Int J Med Sci 2023; 20(8):1024-1037. doi:10.7150/ijms.85789 This issue Cite

Review

Chinese patent medicines for coronary microvascular disease: clinical evidence and potential mechanisms

Zhihua Yang^1,2, Yangxi Liu¹, Zhihui Song², Yujian Fan¹, Shanshan Lin¹, Zhao Ge¹, Shaoling Feng¹, Yu Liu¹, Yingfei Bi¹, Yi Wang² , Xianliang Wang¹ , Jingyuan Mao¹

1. First Teaching Hospital of Tianjin University of Traditional Chinese Medicine, National Clinical Research Center for Chinese Medicine Acupuncture and Moxibustion, Tianjin, 300381, China.
2. Institute of Traditional Chinese Medicine, Tianjin University of Traditional Chinese Medicine, Tianjin, 301617, China.

✉ Corresponding authors: Xianliang Wang: xlwang1981com, Yi Wang: wangyiedu.cn, Jingyuan Mao: jymaocom.

Abstract

Coronary microvascular disease (CMVD) is a high risk factor for many cardiovascular events. Due to the limited understanding of its pathophysiological mechanism, modern medicine still lacks therapeutic drugs for CMVD. Existing clinical studies have shown that traditional Chinese medicine (TCM) can effectively improve the clinical symptoms and quality of life of CMVD patients. As an indispensable part of TCM, Chinese patent medicines (CPMs) are widely used in clinical practice. In the face of numerous oral CPMs for treatment of CMVD, how to choose a reasonable medication regimen is one of the important issues in clinic. Based on this, this paper reviewed the clinical efficacy and recommended level of 12 CPMs in the treatment of CMVD, which are recommended by expert consensus on diagnosis and treatment of coronary microvascular disease with integrated Chinese and Western medicine (WM). In addition, this study also systematically summarized the possible mechanisms of CPMs in the treatment of CMVD by protecting coronary microvascular endothelial cells, improving vascular endothelial function, inhibiting inflammation, reducing oxidative stress, promoting angiogenesis, and improving hemorheology, aiming to provide meaningful information for its clinical application.

Keywords: coronary microvascular disease, traditional Chinese medicine, Chinese patent medicines, clinical evidence, potential mechanisms

Introduction

Coronary microvascular disease (CMVD) refers to a class of diseases characterized by subjective symptoms and/or objective evidence of myocardial ischemia due to insufficient myocardial blood supply and abnormal regulation of myocardial blood flow caused by the abnormal structure and/or function of coronary microvessels [1]. There is no epidemiological information on CMVD in a large sample of people. A systematic review published in 2017 covering approximately 1.4 million subjects in 54 studies showed that the prevalence of CMVD without concomitant obstructive coronary artery disease (OCAD) was 67% in patients with stable angina, and it was considerably greater in women than in men [2]. In 2020, a meta-analysis of 6,631 patients with non-obstructive myocardial ischemia using coronary flow reserve (CFR) to determine the presence of CMVD showed that compared with patients without CMVD, CMVD patients had a 3.93-fold increase in mortality and a 5.16-fold increase in the incidence of adverse cardiovascular events [3]. Another meta-analysis that included 37 studies and 7212 patients with non-obstructive myocardial ischemia revealed that the prevalence of CMVD was about 41% and that female patients had a higher risk of developing CMVD compared to male patients [4]. And patients with CMVD have a significantly increased risk of major adverse cardiovascular events (MACE) relative to the healthy population [5-8]. Furthermore, CMVD has been associated with independently worsening diastolic dysfunction, and patients with diastolic dysfunction combined with CMVD had a 5-fold increased risk of hospitalization due to heart failure with preserved ejection fraction [5]. Therefore, the diagnosis and treatment of CMVD is of great clinical importance.

In recent years, the understanding of CMVD is gradually deepening both domestically and internationally. In 2017, academician Zhang Yun and others developed the Chinese Expert Consensus on the Diagnosis and Treatment of CMVD [1], which is the first expert consensus on CMVD to be published both domestically and internationally. It has received significant attention from both domestic and international cardiovascular disease academia. Since then, seven guidelines/expert consensus regarding CMVD have been published in China and overseas. In 2018, the Coronary Vasomotion Disorders International Study Group (COVADIS) proposed international diagnostic criteria for type 1 microvascular abnormalities or primary CMVD and included slow flow on coronary angiography as one of the evidence of coronary artery microvascular abnormalities [9].In 2019, the European Society of Cardiology (ESC) classified CMVD as an important type of chronic coronary syndrome and proposed corresponding diagnostic and treatment strategies[10]. The American Heart Association (AHA) indicates that CMVD may be an important cause of myocardial infarction with no-obstructive coronary arteries (MINOCA)[11]. In 2020, the European Association of Percutaneous Cardiovascular Interventions (EAPCI) and the ESC jointly published a consensus document on Ischemia and No Obstructive Coronary Artery Disease (INOCA), proposing CMVD and/or subepicardial coronary artery spasm as the main cause of INOCA [12]. The Expert Consensus on the Diagnosis and Treatment of Multidisciplinary Microvascular Illnesses in China, released by the Chinese Geriatrics Society in 2020[13], covered the pathological characteristics and common prevention and control measures of multi-organ microvascular diseases. In 2022, Expert Consensus on the Diagnosis and Treatment of Coronary Artery Microvascular Diseases with Integrated Chinese and Western medicine (WM), jointly led by the Cardiovascular Committee of the China Association of TCM, Collateral Disease Committee of Beijing Society of traditional Chinese medicine (TCM) and Dongzhimen Hospital of Beijing University of TCM, was the first published expert consensus on the treatment of CMVD with proprietary TCM.

Currently, the progress of WM treatment of CMVD is relatively slow, and there is no drug available for CMVD. Clinical treatment of CMVD is still dominated by traditional cardiovascular drugs such as nicorandil, statins, calcium channel blockers and renin-angiotensin system blockers [14]. There is no specific disease name for CMVD In TCM. Based on clinical symptoms, it can be classified under the category of "chest obstruction and heart pain" in TCM. TCM has many advantages, such as multi-components, multi-targets, multi-pathways, wide action mechanisms, minimal adverse effects, and good patient compliance, which play a unique role in the prevention and treatment of CMVD. The pathogenesis of CMVD is complex, and currently effective treatment methods are lacking. Under the guidance of the theory of holistic concept and the syndrome differentiation and treatment, individualized TCM treatments have shown good clinical efficacy in managing CMVD. In recent years, the research of TCM in the prevention and treatment of CMVD is deepening. Our team has previously conducted a review of clinical studies in the field of TCM against CMVD, and summarized 71 representative randomized controlled trials involving 34 oral Chinese patent medicines (CPMs), 11 TCM injections and 26 TCM decoctions. Our previous summary results showed that compared with the use of conventional WM alone, the combination of TCM can further alleviate angina symptoms in CMVD patients, improve the TCM evidence score and ECG ischemia, improve quality of life and exercise tolerance, improve coronary microcirculation disturbance, increase CFR, decrease the index of microvascular resistance (IMR), protect vascular endothelial function, inhibit inflammatory responses in the body, reduce blood lipids, improve long-term prognosis and reduce rehospitalization rate [14]. Our preliminary summary of clinical evidence shows that TCM has great potential in the field of CMVD prevention and treatment.

CMVD is one of the dominant diseases in TCM treatment. CPMs is a modern preparation processed according to the prescribed prescription and preparation technology under the guidance of the TCM theory. Compared with TCM decoction, oral CPMs has the advantages of convenient to carry, controllable dose and good taste, and occupies an important position in the field of medical care in China. At present, there are few high-quality evidence-based clinical studies on the treatment of CMVD with CPMs that meet the requirements, and some outcome indicators have not been fully supported by evidence-based evidence. Moreover, there is a lack of evidence-based suggestions for the diagnosis and treatment of CMVD-integrated TCM and WM. In the face of many oral CPMs for treatment of CMVD, how to choose the reasonable drug regimen is one of the important clinical problems. The Expert Consensus on the Diagnosis and Treatment of CMVD with integrated Chinese and WM is the first expert consensus on the treatment of CMVD with proprietary TCM, and it is extremely important for increasing the efficacy of CMVD treatment by serving as a guide and reference for TCM and WM specialists, general practitioners and primary care physicians [15]. This paper systematically summarizes and analyzes the clinical evidence and pharmacological mechanisms of action of CPMs recommended by Expert Consensus on the Diagnosis and Treatment of CMVD with integrated Chinese and WM for the treatment of CMVD and provides a scientific basis for their clinical application.

Classification and diagnostic criteria of CMVD

Classification of CMVD

According to the different etiologies of CMVD, it can be divided into three categories: CMVD without OCAD, CMVD with OCAD, and other types of CMVD [1]. CMVD without OCAD includes microvascular angina and coronary slow flow phenomenon [15]. There are three common clinical types of CMVD with OCAD: 1) patients with stable angina pectoris and coronary artery disease (CAD) heavier than the symptoms expected from the degree of coronary stenosis; 2) acute coronary syndrome; 3) after emergency percutaneous coronary intervention (PCI), the blood vessels were re-routed, but the myocardial perfusion was not restored, that is, there was no reflow[15].

Diagnostic criteria of CMVD

CMVD without OCAD

Referring to the 2020 EAPCI Expert Consensus Document on INOCA [12], angina symptoms with objective evidence of myocardial ischemia should be satisfied, but coronary angiography or coronary computed tomography angiography (CTA) showed no subepicardial OCAD, as seen in Table 1.

CMVD with OCAD

According to the Chinese Expert Consensus on the Diagnosis and Treatment of CMVD[1], CAD patients can be diagnosed as CMVD complicated with OCAD if one of the following five conditions occurs after revascularization to relieve epicardial coronary artery stenosis: 1) CFR < 2.0 is measured after intra-coronary injection of adenosine or dipyridamole; 2) There is no spasm in the subepicardial coronary artery after intra-coronary injection of acetylcholine, but typical angina pectoris and ischemic ST-T changes in electrocardiogram are observed; 3) Coronary angiography criminal vascular thrombolysis in myocardial infarction (TIMI) blood grading is 0~2; 4) SPECT shows no local perfusion area of myocardium before discharge; 5) CMR imaging shows myocardial perfusion defect or gadolinium delayed enhancement.

TCM treatment of CMVD

TCM syndrome diagnosis of CMVD

CMVD belongs to the category of TCM “chest obstruction” and “heartache”, which can refer to TCM “chest obstruction” and “heartache” for syndrome differentiation and treatment. The common TCM syndromes of CMVD include blood stasis, phlegm turbidity, qi deficiency, qi stagnation, Yin deficiency, and Yang deficiency. The common complex syndrome type is qi deficiency and blood stasis syndrome, followed by phlegm and blood stasis syndrome, Yang deficiency and blood stasis syndrome, and qi stagnation and blood stasis syndrome [15]. The main clinical symptoms of CMVD are paroxysmal chest tightness or chest pain, which can be divided into 6 kinds of syndromes. TCM syndrome differentiation of CMVD is seen in Table 2.

Clinical evidence of CPMs treatment of CMVD

Search strategy/methodology: According to the inclusion criteria, literature was retrieved from CNKI, Wanfang Data, VIP Journal database, PubMed, the Cochrane Library, EMbase and other databases from the establishment of the database to May 2022, and supplementary retrieval was conducted by referring to the literature included in the systematic reviews included in this study. The search terms used to define the disease included: coronary microvascular disease, coronary microvascular dysfunction (CMD), microvascular angina, microvascular chest pain, cardiac syndrome X, coronary slow flow phenomenon, coronary slow flow, no-reflow.

Inclusion criteria: Subjects: Patients with CMVD, including CMD, microvascular angina (cardiac syndrome X), coronary slow flow phenomenon, and no reflow after PCI. Intervention and control measures: ① The experimental group was treated with a Chinese patent medicine or external treatment of TCM combined with conventional WM, the control group was treated with conventional WM; ② The experimental group was treated with a Chinese patent medicine or external treatment of TCM, the control group was treated with placebo or routine nursing measures. Type of study: Randomized controlled trials (RCTs) or systematic reviews.

Exclusion criteria: ①Studies with missing important data such as sample size and outcome measures; ② Studies lack comparability of baseline data between groups.; ③ Repeatedly published studies; ④ Studies for which full-text reports could not be obtained; ⑤ Studies that significantly violate the diagnostic and treatment routine.The clinical evidence for this consensus was constructed by searching the currently published RCTs or systematic reviews of the treatment of CMVD with CPMs.

The Expert Consensus on the Diagnosis and Treatment of CMVD with integrated Chinese and WM recommends 12 CPMs for the treatment of CMVD, among which the majority are for the treatment of qi deficiency and blood stasis syndrome, and qi stagnation and blood stasis syndrome, while the treatment of other syndromes of CMVD is insufficient, as shown in Table 3[15]. Based on Table 3, the clinical evidence of CPMs for CMVD is summarized in Table 4.

Microvascular angina

Qi deficiency and blood stasis syndrome

Syndrome differentiation of microvascular angina belongs to qi deficiency and blood stasis syndrome except for the typical symptoms of angina pectoris, there is also shortness of breath and fatigue, and the symptoms are aggravated during activity. Based on the routine treatment of WM, Tongxinluo capsule, Qishen Yiqi dropping pills or Naoxintong capsule (strong recommendation) and Shexiang Tongxin dripping Pills (weak recommendation) can be used for such patients [16]. Existing clinical studies have shown that the combined use of Tongxinluo capsule or Naoxintong capsule based on the routine treatment of WM can reduce the attack times of angina pectoris [16-18], shorten the duration of each angina pectoris attack [18], prolong the duration of treadmill exercise [19, 20], and reduce the dosage of nitroglycerin [18]. Compared with the routine treatment of WM, Qishen Yiqi dropping pills combined with routine WM can decrease IMR in patients with microvascular angina pectoris. For patients with heart failure, Qishen Yiqi dropping pills can increase left ventricular ejection fraction (LVEF) and improve cardiac function [21]. A meta-analysis of randomized controlled trials (RCTs) including 3537 patients after PCI showed that the application of Qishen Yiqi dripping Pills combined with WM in the treatment of patients after PCI could reduce the occurrence of major adverse cardiovascular events (MACE), improve the clinical efficacy, quality of life and prognosis compared with WM treatment alone [22]. Shexiang Tongxin dripping pills by themselves can decrease IMR in patients with microvascular angina as compared to the untreated group. Compared with the routine treatment of WM alone [23], Shexiang Tongxin dripping pills combined with routine treatment of WM can prolong the duration of patients' treadmill exercise and reduce the frequency of angina pectoris attacks [24]. A meta-analysis demonstrated that Shexiang Tongxin dropping pills combined with conventional therapy of CAD was more effective than conventional therapy in the indicators of the total effective rate, electrocardiogram efficacy, the number and duration of angina attack, and improve blood lipids [25].

Qi stagnation and blood stasis syndrome

Syndrome differentiation of microvascular angina belongs to qi stagnation and blood stasis syndrome except for typical angina pectoris, at the same time, it can be seen that the pain in the chest and flank is aggravated with the change of mood. Based on the routine treatment of WM, such patients can be treated with Shexiang Baoxin pills, Compound Danshen dripping pills, Wide chest aerosol, Suxiao Jiuxin pills, Xuefu Zhuyu capsule (strong recommendation), and Yindan Xinnaotong soft capsule (weak recommendation). Shexiang Baoxin pills [26-28], Compound Danshen dripping pills [29], Suxiao Jiuxin pills [30] or Yindan Xinnaotong soft capsule [31] combined with WM in the treatment of patients with microvascular angina, compared with the routine treatment of WM, it can reduce the frequency of angina pectoris attacks. A multicenter randomized double-blind placebo-controlled trial including 200 acute coronary syndrome (ACS) with early PCI patients showed that Suxiao Jiuxin pills (SJP) with WM was more effective than WM treatment alone in the indicators of improvement of heart function and quality of life, lowed incidence of MACE, increased score in the seattle angina questionnaire (SAQ) subscale and decreased the serum concentration of fibrinogen (Fib) and cystatin C (cysC)[32]. Compared with the routine treatment of WM, the combination of Shexiang Baoxin pills [33-35] or Yindan Xinnaotong soft capsule [36] can decrease IMR. A Meta-Analysis analysis results demonstrated that Yindanxinnaotong soft capsule could regulate coagulation condition and fibrinolytic system in patients with CAD and improve myocardial ischemia, angina symptoms, and heart function, reduce restenosis after PCI, and regulate blood lipids, control the long-term development of the cardiovascular disease and prevent the cardiovascular events from happening again [37]. Shexiang Baoxin pills [38] or Xuefu Zhuyu capsule [39] combined with routine WM can prolong the duration of treadmill exercise in patients with microvascular angina. A systematic review and meta-analysis analysis results showed that Shexiang Baoxin pills could demonstrate a beneficial role in patients with CAD after PCI of reducing the incidence of MACE and improving LVEF, N-terminal pro-B-type natriuretic peptide (NT-pro-BNP), inflammatory mediators, and blood lipid index [40]. Wide chest aerosol can reduce the number of corrected TIMI frame grading during coronary angiography in patients with microvascular angina [41]. A non-inferiority multi-center RCT demonstrated that Wide chest aerosol can rapidly relieve angina pectoris. Furthermore, Wide chest aerosol has superior effect, and better tolerability than nitroglycerin tablet among Canadian Cardiovascular Society Ⅱ and Ⅲ patients [42].

Qi and Yin deficiency syndrome

The syndrome differentiation of microvascular angina belongs to the qi and Yin deficiency syndrome. In addition to the typical symptoms of angina pectoris, there are also symptoms of qi deficiency such as fatigue, shortness of breath, aggravation of labor, and Yin deficiency such as tidal fever and sweating, night sweats, and red tongue with little coating. Such patients can be treated with Tongmai Yangxin pills based on conventional WM (strong recommendation). Compared with conventional WM, Tongmai Yangxin pills combined with conventional WM can reduce the positive rate of treadmill exercise for patients with microvascular angina [43]. A systematic review of RCTs showed that compared with the single application of WM treatment, the combined administration with Tongmai Yangxin pills and WM has a better clinical efficacy in the treatment of angina pectoris of CAD in terms of the improvement rate of electrocardiogram and the clinical efficacy of TCM syndrome [44]. Modern pharmacological research indicated that Tongmai Yangxin pills could improve the cardiac structure and function, reduce muscle fiber swelling and inflammatory cell infiltration, alleviate cardiomyocyte injury, and significantly reduce myocardial ischemia reperfusion with no-reflow [45].

Heart blood stasis syndrome

The differentiation of microvascular angina pectoris belongs to the heart blood stasis syndrome with clinical manifestations of chest pain, chest tightness, and lip and/or tongue dark purple can be treated with CPMs for activating blood and resolving stasis, dredging collaterals and relieving pain such as Danshen tablets (weak recommendation). Danshen tablets combined with conventional WM can prolong the duration of treadmill exercise, and reduce the frequency of angina attacks and the dosage of nitroglycerin in the treatment of microvascular angina patients compared with conventional WM [46].

ST-elevation myocardial infarction

For patients needing revascularization, the application of TCM intervention based on conventional WM treatment before surgery can reduce the incidence of patients with no reflow after PCI. Clinical evidence shows that Tongxinluo capsule combined with conventional WM can be used to treat acute myocardial infarction patients and reduce the no-reflow rate (strong recommendation). For patients with ST-elevation acute myocardial infarction (STEMI), combined application of Tongxinluo capsule and conventional WM before emergency PCI further reduced the no-reflow rate within 24h compared with conventional WM [47]. A randomized double-blind placebo-controlled study including 3652 patients with CAD after PCI provided evidence that, compared with conventional treatment alone, Tongxinluo capsule as an adjuvant therapy had better clinical efficacy in the treatment of CAD after PCI and could effectively reduce the risk of angiographic restenosis, heart failure, angina, myocardial infarction, revascularization, and lower all-cause mortality and mortality due to any cardiovascular event on the 6-month course[48].

No-reflow after PCI

In the case of patients with no-reflow after PCI, combined with TCM intervention based on conventional WM treatment can further reduce the no-reflow rate of patients. Clinical studies have shown that Compound Danshen dripping pills combined with conventional WM can be used to improve coronary blood flow in patients with coronary no-reflow after PCI (strong recommendation). For patients with coronary no-reflow after PCI, compared with conventional WM, combined application of Compound Danshen dripping pills based on conventional WM after surgery can reduce the incidence of no-reflow [49]. A meta-analysis of RCTs including twenty RCTs involving 2574 participants with CAD indicated that Compound Danshen dripping pills combined with PCI treatment prominently reduced the incidence of MACE, prominently improved vascular endothelial function and cardiac function, dramatically mitigated hemorheology, blood lipid parameters and inflammatory mediators compared with PCI alone [50].

In conclusion, current clinical studies suggest that CPMs can improve IMR and LVEF in CMVD patients, reduce the frequency of angina attacks, shorten the duration of angina, extend the time of treadmill exercise, reduce the dosage of nitroglycerin, improve activity tolerance and quality of life.

Mechanism of action

CMVD is caused by the interaction of multiple factors and mechanisms, including abnormal microvascular function, vascular endothelial dysfunction, inflammatory response, oxidative stress, etc. These physiological and pathological changes play different roles in the occurrence and development of coronary microcirculation [12, 51]. Existing studies have shown that TCM can treat CMVD by protecting coronary microvascular endothelial cells, improving vascular endothelial function, inhibiting inflammatory response, alleviating oxidative stress, promoting angiogenesis, and improving blood rheology (Figure 1).

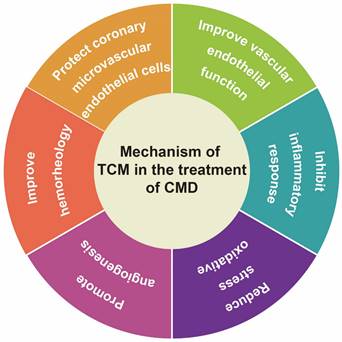

 Figure 1

Mechanism of TCM in the treatment of CMD

Protect coronary microvascular endothelial cells

Cardiac microvascular endothelial cells (CMECs) play an important role in maintaining the normal function of cardiac microvascular, and the dysfunction of CMEC is often preceded by myocardial injury [52]. In the process of occurrence and development of CMVD, the injury of CMECs is the core link. The normal functions such as proliferation, adhesion, migration, apoptosis, and secretion of CMECs are damaged, leading to CMVD, which can cause coronary microvascular constriction, decreased CFR, and insufficient myocardial blood supply clinically, which are the early manifestations of CMVD [53, 54]. An animal experiment has shown that Tongxinluo capsule can effectively protect the structure and function of myocardial microvascular endothelial cells after myocardial ischemia-reperfusion injury, protect microvessels and myocardial perfusion units, and reduce the size of no-reflow and myocardial infarction [55]. Tongxinluo could protect Human cardiac microvascular endothelial cells (HCMECs) from hypoxia /reoxygenation (H/R) injury by promoting autophagy through activation of the mitogen-activated protein kinase/ERK pathway [56]. Han et al. [57] the study found that Qishen Yiqi dropping pills could protect HCMECs from impairment by hypoxia or reoxygenation, in addition, Qishen Yiqi dropping pills could exhibit effects on attenuating microvascular damage and albumin leakage after ischemia/reperfusion (I/R) injury, showing a role in maintaining endothelial junctions, caveolae, and collagen in the basement membrane of microvessels.

Improve vascular endothelial function

The vascular endothelium plays an important role in maintaining the normal vascular system. The abnormal coronary vascular endothelial function could cause the occurrence and development of a variety of cardiovascular diseases, thus protecting vascular endothelial function is of great significance for the prevention and treatment of CMVD. Coronary endothelial dysfunction is closely related to the imbalance between vasoconstrictor factor endothelin-1 (ET-1) and diastolic factor nitric oxide (NO) caused by vascular endothelial injury [58]. Decreased production and excessive depletion of NO have been confirmed to be closely related to microvessels relaxation dysfunction, and enhanced vasoconstricttion function is associated with increased levels of ET-1, catecholamine, and acetylcholine. The signaling pathway mediated by NO is a protective factor of endothelial cells and can inhibit platelet activation by reducing the expression of cell adhesion markers and enhancing the activity of the cyclic guanosine monophosphate signaling pathway to reduce endothelial cell damage [59]. Many studies have confirmed the improving effect of TCM on vascular endothelial function from the perspective of regulating the content of ET-1 and NO antagonistic factors, to treat CMVD. Tongxinluo capsule can improve the endothelial-dependent vasodilation mediated by brachial artery flow, increase the serum levels of NO and adiponectin, reduce the serum levels of ET-1, protect the vascular endothelial function in patients with CMVD, and then relieve the clinical symptoms of patients with angina pectoris [19, 60]. Animal experimental studies have shown that Tongxinluo capsule can up-regulate the expression of related endothelial cell adhesion proteins and the activity of eNOS during reperfusion, reverse the hypertonic state of endothelial cells, improve the damage of microvascular endothelial functional barrier, and prevent the continuous development of myocardial reperfusion injury [61]. Dong et al.'s study [62] found that Compound Danshen dripping pills combined with ticagrelor could significantly improve the levels of serum VEGF and NO, reduce the level of ET-1, improve vascular endothelial function in patients with angina after PCI, and thus reduce the number of angina attacks, shorten the duration of each angina, and improve the quality of life. Shexiang Baoxin pills can significantly reduce the frequency of angina attacks in CMVD patients, improve endothelial-dependent flow-mediated vasodilation (FMD) mediated by brachial artery flow, reduce serum Ang II, CRP, and ET-1 levels, increase serum NO level, and protect vascular endothelial function [28, 63].

Inhibit inflammation

Coronary microvascular endothelial cell injury is the core of CMVD induction. Inflammatory response plays an important role in the occurrence and development of coronary microvascular endothelial dysfunction. Inflammatory factors not only cause vascular endothelial injury and intima thickening but also reduce the synthesis of NO and prostacyclin in endothelial cells, activating immune cells to release human endothelin (ET) and ET immune-like activators, resulting in abnormal endothelial function [64]. A variety of inflammatory factors can participate in the occurrence and development of CMVD through the endothelial cell injury pathway [65, 66]. Serum C-reactive protein (CRP) is a recognized marker of inflammation, and its serum level is often used to describe chronic low-grade inflammation in the whole body [67]. CFR is an effective indicator of abnormal coronary microcirculation function when coronary angiography does not show obvious stenosis. In a study involving 21 CMVD patients and 21 healthy volunteers, Recio-Mayoral et al. [68] divided patients with CMVD into high CRP group (> 3mg/L) and low CRP group (≤3mg/L) according to CRP levels. The results showed that the CFR of the low CRP group was not significantly different from that of the healthy group, while the CFR of the high CRP group was significantly lower than that of the low CRP group. This study was the first to confirm the correlation between chronic low-grade inflammation and CMVD, and the effect of CRP on CFR was dose-dependent. Tong et al. [69] and Aryan et al. [70] found that hs-CRP-mediated chronic inflammation was an independent predictor of CMD in patients with ischemic heart disease. TNF-α, IL-6, and leptin can activate nicotinamide adenine dinucleotide phosphate oxidase in the vessel wall, which can reduce NO bioavailability by promoting hyperoxide anion production, ultimately leading to coronary microvessel diastolic function injury [71]. Chen et al. [72] revealed that routine treatment combined with Danhong injection could reduce plasma levels of hypersensitive C-reactive protein (hs-CRP) and homocysteine, thus improving vascular endothelial function and relieving clinical symptoms of patients. Tongxinluo capsule can effectively reduce the levels of serum TNF-α, IL-1, and IL-6 in CMVD patients, increase the level of serum IL-10, inhibit the body's inflammatory response, and thus improve the clinical symptoms of patients [19]. Shexiang Baoxin pills combined with conventional WM have a significant effect on patients with angina pectoris of CAD, which can effectively reduce the levels of IL-6 and hs-CRP and inhibit the inflammatory response of patients [33]. Xuefu Zhuyu decoction, compound Danshen dripping pills, and Yindan Xinnaotong soft capsule can effectively improve the clinical symptoms of angina patients, and reduce the levels of serum inflammatory factors hs-CRP, IL-6, IL-1β, and TNF-α [36, 73, 74].

Reduce oxidative stress

CMVD is caused by the interaction of multiple factors and multiple mechanisms, among which oxidative stress is considered to be one of the main mechanisms. Under oxidative stress, the production of oxygen free radicals increases, triggering mitochondrial dysfunction, calcium overload, DNA damage, and myocardial membrane lipid peroxidation, which can eventually lead to cell death [75]. A large amount of ROS is produced during cell ischemia and hypoxia. When it exceeds the antioxidant capacity of the body, it can lead to lipid peroxidation of vascular endothelial cells, gradually peeling away from blood vessels, resulting in exposed collagen fibers under the endothelium, activating the endogenous coagulation system, and further causing platelet activation, up-regulation of adhesion factors, fibrin aggregation, a decrease of plasmin activity, and formation of microthrombus. These changes aggravate local ischemia and form a vicious cycle, resulting in CMVD [76]. Yindan Xinnaotong soft capsule after acute myocardial infarction (AMI) emergency PCI can significantly reduce the level of malondialdehyde (MDA) and lipid peroxide (LPO), and increase the superoxide dismutase (SOD) level. The oxidative stress index of the body can be effectively improved, the oxidative stress injury can be alleviated, and then the myocardial perfusion of patients can be improved and the coronary blood flow reserve function can be enhanced [77]. Tongxinluo capsule combined with routine WM treatment in patients with no-reflow after PCI can reduce serum MDA level, increase SOD level, inhibit oxidative stress, improve myocardial microperfusion, and improve cardiac function indicators, and thus improve the prognosis of patients [78]. Gu et al. [73] clinical research found that Compound Danshen dripping pills could reduce the serum levels of LPO, SOD, and MDA in patients with angina pectoris of CAD, reduce the oxidative stress damage of the body, and improve the clinical symptoms of angina pectoris patients. Based on conventional WM treatment, Qishen Yiqi dripping pills can further reduce serum SOD, advanced glycation end products, MDA, advanced oxidation protein products oxidative stress indexes, reduce the oxidative stress injury of the body, and then relieve the clinical symptoms of myocardial ischemia, chest tightness, palpation and so on in CAD patients, improve the prognosis of patients [79].

Promote angiogenesis

The decreased number of myocardial capillaries is one of the important determinants of CFR. Angiogenesis can effectively improve CMVD by increasing blood supply capacity, restoring cardiac function, and improving hemodynamics. Zhang et al. [80] found that Xuefu Zhuyu decoction could up-regulate the expression of vascular endothelial growth factor (VEGF) protein, increase the number of endothelial cells in ischemic myocardium, increase myocardial microvascular density, and promote angiogenesis in rats with acute myocardial ischemia. Chen et al. [81] found that Shexiang Baoxin pills promoted angiogenesis by up-regulating VEGF level in CAD patients. Clinical studies have found that based on conventional WM treatment, the combined application of Shexiang Baoxin pills can effectively reduce the levels of related hemorheological indexes such as fibrin, plasma viscosity, and whole blood viscosity in CAD patients, improve the levels of serum angiogenesis factors NO, NOS and VEGF, and further promote the establishment of coronary collateral circulation, reduce the incidence frequency and shorten the duration of CAD[82]. Zhang et al. [83] found that Shexiang Baoxin pills regulated endothelial cell function and signal transduction pathway by activating macrophages, promoting human umbilical vein endothelial cell proliferation and migration and tubule formation, angiogenesis factor mRNA and protein expression, and promoted angiogenesis. Shexiang Tongxin dropping pills clould alleviate cardiac dysfunction in rats with CMD caused by ligation of the left anterior descending branch by inducing M2 macrophage polarization to promote angiogenesis in ischemic myocardium [84]. Vascular growth factors such as VEGF and basic fibroblast growth factor (bFGF) are helpful to increase vascular permeability, angiogenesis and intravascular homeostasis. Zhang et al. [85] found that Qishen Yiqi dripping pills could increase the vascular density of the left ventricle and reduce the infarct area by increasing the protein expression levels of VEGF and bFGF and mRNA level of platelet-derived growth factor-B in myocardial tissue of myocardial infarction rats.

Improve hemorheology

Sustained hemodynamic abnormalities can lead to structural damage of microvessels, increased vascular walls permeability, capillary leakage, basement membrane damage and secondary thickening, vascular cavity stenosis or even occlusion, microthrombus formation, microcirculation ischemia, hypoxia, and then lead to organ dysfunction. The hemorheological parameters are closely related to the severity of CAD, and the improvement of various hemorheological parameters such as high viscosity can improve coronary blood flow. Li et al. [86] observed the influence of Qishen Yiqi dropping pills on hemorheology in elderly cardiovascular and cerebrovascular diseases patients, and confirmed that oral administration of Qishen Yiqi dropping pills based on the treatment of the primary disease could significantly reduce hemorheology indexes such as whole blood low shear viscosity, whole blood high shear viscosity, plasma viscosity, and hematocrit, and it is safe and effective. Huang et al. [87] studied the effects of the Compound Danshen dripping pills on hemorheology, blood lipid, and inflammatory response transmitters in elderly CAD patients. The results showed that Compound Danshen dropping pills combined with conventional WM could not only regulate lipid metabolism and reduce the inflammatory reaction, but also improve hemorheological indexes such as whole blood high shear viscosity, whole blood low shear viscosity, plasma viscosity, hematocrit, and erythrocyte sedimentation rate (ESR), and the efficacy is better than that of conventional WM alone. Xue et al. [63] found that Shexiang Baoxin pills combined with Nicodil could significantly improve cardiac function and hemodynamic indexes such as whole blood viscosity (high shear value, low shear value), plasma specific viscosity, and platelet adhesion rate in patients with coronary microcirculation dysfunction in myocardial infarction. Compared with WM alone, Xuefu Zhuyu decoction on the basis of conventional WM treatment can significantly improve the hemodynamics, reduce myocardial ischemia and improve clinical symptoms such as angina [74].

Conclusion and perspectives

With the rapid development of evidence-based medicine and coronary interventional techniques, the clinical significance of CMVD has received increasing attention. CMVD has a complex etiology and pathogenesis, its treatment remains limited to improving lifestyle, controlling the traditional risk factors for atherosclerosis, and relieving myocardial ischemia. There are currently no large sample randomized clinical trials using cardiovascular events as the assessed endpoint and CMVD as the study subject. Therefore, it is unclear which therapy option can lower the rate of cardiovascular events in CMVD. And modern medicine still lacks an effective treatment for CMVD.

In recent years, the understanding of CMVD in TCM has been considerably advanced, and numerous clinical types of research have been conducted. The available clinical evidence suggests that treatment for CMVD with TCM has been shown to reduce the attack times of angina pectoris, shorten the duration of angina pectoris attacks, prolong the duration of treadmill exercise, reduce the dosage of nitroglycerin, ameliorate TCM syndrome, improve cardiac function, improve exercise tolerance and quality of life, reduce mortality and rehospitalization rates, and improve long-term prognosis, etc. But there is a lack of evidence-based suggestions for the Diagnosis and Treatment of CMVD with integrated Chinese and WM. This paper systematically summarizes the clinical evidence of proprietary TCM for the treatment of coronary microvascular disease recommended by the Expert Consensus on the Diagnosis and Treatment of CMVD with integrated Chinese and WM, however, few high-quality evidence-based clinical studies fit the criteria, and several of the outcome indicators are not yet supported by sufficient evidence-based evidence. The ultimate level of evidence and the severity of the recommendation were impacted by some of the included studies' confusing statements of sample size estimation, random assignment concealment strategies, blinded designs, and shedding rates. Future clinical studies on CMVD treatment with TCM should be conducted in large-sample, multicenter randomized clinical trials with cardiovascular events as the observed endpoint, to test the possibility of developing new drugs and therapies specifically targeting CMVD to improve clinical endpoints and to establish treatments with evidence-based medical evidence. TCM has multi-target and multi-path therapeutic characteristics, and certain results have been achieved so far, as research advances, it is thought that TCM offers enormous potential for CMVD prevention and therapy.

Abbreviations

CMVD: Coronary microvascular disease; TCM: traditional Chinese medicine; WM: Western Medicine; CFR: coronary flow reserve; MACE: major adverse cardiovascular events; COVADIS: Coronary Vasomotion Disorders International Study Group; ESC: European Society of Cardiology; AHA: American Heart Association; MINOCA: myocardial infarction with no-obstructive coronary arteries; EAPCI: European Association of Percutaneous Cardiovascular Interventions; INOCA: Ischemia and No Obstructive Coronary Artery Disease; IMR: index of microvascular resistance; CPMs: Chinese patent medicines; PCI: percutaneous coronary intervention; CTA: coronary computed tomography angiography; OCAD: obstructive coronary artery disease; CAD: coronary artery disease; CMD: coronary microvascular dysfunction; TIMI: thrombolysis in myocardial infarction; FFR: fractional flow reserve; SPECT: single-photon emission computed tomography; MRI: magnetic resonance imaging; STEMI: ST-elevation acute myocardial infarction; LVEF: left ventricular ejection fraction; CMECs: cardiac microvascular endothelial cells; H/R: hypoxia/reoxygenation; I/R: ischemia/reperfusion; ET-1: endothelin-1; NO: nitric oxide; FMD: flow-mediated vasodilation; CRP: C-reactive protein; hs-CRP: hypersensitive C-reactive protein; AMI: acute myocardial infarction; MDA: malondialdehyde; LPO: lipid peroxide; SOD: superoxide dismutase; VEGF: vascular endothelial growth factor; bFGF: basic fibroblast growth factor.

Acknowledgements

This work was supported by the National Natural Science Foundation of China (no. 82174326), the Innovation Team and Talents Cultivation Program of the National Administration of Traditional Chinese Medicine (No: ZYYCXTD-C-202203), the “Innovation Team Development Plan” of the Ministry of Education-Research on the prevention and treatment of cardiovascular diseases in traditional Chinese medicine (no. IRT_16R54), the Tianjin Research Innovation Project for Postgraduate Students (no. 2021YJSB294), and the Graduate Research Innovation Project of Tianjin University of Traditional Chinese Medicine (no. YJSKC-20211012).

Author Contributions

Zhihua Yang, Yangxi Liu, and Zhihui Song wrote the manuscript. Yujian Fan, Shanshan Lin, Zhao Ge, and Shaoling Feng performed the literature search, selected relevant articles, and interpreted data; Zhihua Yang, Yu Liu, and Yingfei Bi revised the manuscript; Yi Wang, Xianliang Wang, and Jingyuan Mao designed and supervised this work. All authors have read and approved the final submission.

Competing Interests

The authors have declared that no competing interest exists.

References

1. Zhang Y, Chen YD, Fu XH, Chen WQ, Li DD, Gu XS. et al. Chinese expert consensus on the diagnosis and treatment of coronary microvascular disease Chinese Circulation Journal. 2017; 32: 421-30.

2. Wang ZJ, Zhang LL, Elmariah S, Han HY, Zhou YJ. Prevalence and Prognosis of Nonobstructive Coronary Artery Disease in Patients Undergoing Coronary Angiography or Coronary Computed Tomography Angiography: A Meta-Analysis. Mayo Clin Proc. 2017;92:329-46

3. Gdowski MA, Murthy VL, Doering M, Monroy-Gonzalez AG, Slart R, Brown DL. Association of Isolated Coronary Microvascular Dysfunction with Mortality and Major Adverse Cardiac Events: A Systematic Review and Meta-Analysis of Aggregate Data. J Am Heart Assoc. 2020;9:e014954

4. Mileva N, Nagumo S, Mizukami T, Sonck J, Berry C, Gallinoro E. et al. Prevalence of Coronary Microvascular Disease and Coronary Vasospasm in Patients with Nonobstructive Coronary Artery Disease: Systematic Review and Meta-Analysis. J Am Heart Assoc. 2022;11:e023207

5. Taqueti VR, Solomon SD, Shah AM, Desai AS, Groarke JD, Osborne MT. et al. Coronary microvascular dysfunction and future risk of heart failure with preserved ejection fraction. Eur Heart J. 2018;39:840-9

6. Murthy VL, Naya M, Taqueti VR, Foster CR, Gaber M, Hainer J. et al. Effects of sex on coronary microvascular dysfunction and cardiac outcomes. Circulation. 2014;129:2518-27

7. Lee SH, Shin D, Lee JM, van de Hoef TP, Hong D, Choi KH. et al. Clinical Relevance of Ischemia with Nonobstructive Coronary Arteries According to Coronary Microvascular Dysfunction. J Am Heart Assoc. 2022;11:e025171

8. Lee JM, Jung JH, Hwang D, Park J, Fan Y, Na SH. et al. Coronary Flow Reserve and Microcirculatory Resistance in Patients with Intermediate Coronary Stenosis. J Am Coll Cardiol. 2016;67:1158-69

9. Ong P, Camici PG, Beltrame JF, Crea F, Shimokawa H, Sechtem U. et al. International standardization of diagnostic criteria for microvascular angina. Int J Cardiol. 2018;250:16-20

10. Knuuti J, Wijns W, Saraste A, Capodanno D, Barbato E, Funck-Brentano C. et al. 2019 ESC Guidelines for the diagnosis and management of chronic coronary syndromes. Eur Heart J. 2020;41:407-77

11. Tamis-Holland JE, Jneid H, Reynolds HR, Agewall S, Brilakis ES, Brown TM. et al. Contemporary Diagnosis and Management of Patients with Myocardial Infarction in the Absence of Obstructive Coronary Artery Disease: A Scientific Statement from the American Heart Association. Circulation. 2019;139:e891-e908

12. Kunadian V, Chieffo A, Camici PG, Berry C, Escaned J, Maas A. et al. An EAPCI Expert Consensus Document on Ischaemia with Non-Obstructive Coronary Arteries in Collaboration with European Society of Cardiology Working Group on Coronary Pathophysiology & Microcirculation Endorsed by Coronary Vasomotor Disorders International Study Group. Eur Heart J. 2020;41:3504-20

13. Chen H, Gong T, Wang XX, Sun Y. Chinese multidisciplinary expert consensus on the clinical diagnosis and treatment of microvascular diseases. Chinese Circulation Journal. 2020;35:1149-65

14. Yang Z, Lin S, Liu Y, Ren Q, Ge Z, Wang C. et al. Traditional chinese medicine in coronary microvascular disease. Front Pharmacol. 2022;13:929159

15. Lin Q, Wu ZG, Zhang LJ, Huo Y. Expert consensus on diagnosis and treatment of coronary microvascular disease with integrated traditional and western medicine. Chinese Journal of Integrative Medicine on Cardio-Cerebrovascular Disease. 2022;20:3841-50

16. Fang YY, Hu ZQ, Wu G, Wei X. Effect analysis of Tongxinluo capsule on the treatment of the cardiac syndrome X in patients complicating diabetes. Chinese Journal of Difficult and Complicated Cases. 2018;17:325-8

17. Qin G, Jia YP, Lv JY. Effect of Tongxinluo capsule combined with Nicorandil and Simvastatin on coronary slow blood flow. Chinese Journal of Integrative Medicine on Cardio-Cerebrovascular Disease. 2017;15:2807-10

18. Cheng F. Combined Naoxintong Capsule treatment of 62 cases of cardiac syndrome X. Chinese Traditional Patent Medicine. 2011;33:2041-3

19. Lv XL, Zhao ZQ, Feng Z, Q, Feng JY, gu HM. Effects of Tongxinluo capsule on endothelial function and inflammatory factors in patients with cardiac syndrome X. Journal of Clinical Medicine in Practice. 2014;18:135-6

20. Lu H, Ma RR. Clinical observation on the therapeutic effect of Tongxinluo capsule on patients with cadiac X-syndrome complicated by abnormality of coronary artery flow reserve. Chinese Journal of Difficult and Complicated Cases. 2007:655-7

21. Lu XH, Li X, Chen XF, Wang JH, Lu XL. Evaluation of Qishen Yiqi Dropping Pills combined with Nicorandil in the treatment of coronary artery microangiopathy. Chinese Remedies & Clinics. 2020;20:3276-8

22. Dai QQ, Shi ZF, Hu JY, Han SJ, Zhong CM, Guan MK. et al. [Meta-analysis of effect of Qishen Yiqi Dripping Pills combined with Western medicine on adverse cardiovascular events and quality of life after percutaneous coronary intervention]. Zhongguo Zhong Yao Za Zhi. 2021;46:1498-510

23. Gong YM, Si L, Guo XJ, Zhang M, Song W, Zhao B. et al. Curative effect and clinical safety of Shexiang Tongxin dropping Pills for microvascular angina Chinese Journal of Evidence-Based Cardiovascular Medicine. 2021; 13: 577-9+83.

24. Liu JP, Liao HC, Liu L, Zhong SG, Xiao C. Clinical observation of the therapeutic effect of Shexiang Tongxin drop pills on patients with cardiac X syndrome. China Medicine and Pharmacy. 2018;8:231-3

25. Pan J, Zhou JM, Wang XM, Zuo KN, Wang ZH, Lu SQ. et al. [Meta-analysis of efficacy and safety of Shexiang Tongxin Dripping Pills combined with conventional therapy of coronary heart disease]. Zhongguo Zhong Yao Za Zhi. 2021;46:2325-32

26. Sun QL. Clinical effect of Shexiang Baoxin pill on patients with hyperlipidemia and cardiac syndrome X. Guide of China Medicine. 2021;19:134-5

27. Qin HF, Liu XC, Xing DM, Zhang LT. Clinical observation of Shexiang Baoxin Pill in the treatment of microvascular angina pectoris Journal of Medical Forum. 2017; 38: 147-8.

28. Chen BZ, Feng MJ, Chang FY, Sun ZG, Zhang Y, Feng ZR. et al. Effect of Shexiang Baoxin Pill on vascular endothelial function in patients with coronary artery microcirculation disorder Chinese Journal of Integrative Medicine on Cardio-Cerebrovascular Disease. 2022; 20: 182-4.

29. Duan HY. Comparison of Nicorandil and Compound Danshen Dropping Pills in the Treatment of Microvascular Angina Pectoris. Cardiovascular Disease Electronic Journal of Integrated Traditional Chinese and Western Medicine. 2017;5:15 +8

30. Chen RH, Wang DH. Clinical study on Suxiao Jiuxin pills in treating cardiac syndrome X. Chinese Community Doctors. 2012;28:15

31. Peng DG. Observation on therapeutic effect of Yindan Xinnaotong soft capsule on cardiac syndrome X. Chinese Journal of Integrative Medicine on Cardio-Cerebrovascular Disease. 2011;9:746-7

32. Shen Z, Chen T, Deng B, Fan M, Hua J, Zhang M. et al. Effects on Suxiao Jiuxin Pills in the Treatment of Patients with Acute Coronary Syndrome Undergoing Early Percutaneous Coronary Intervention: A Multicenter Randomized Double-Blind Placebo-Controlled Trial. J Altern Complement Med. 2020;26:1055-63

33. Liu XH. The effect of Shexiang Baoxin pills combined with conventional western medicine in the treatment of 50 cases of patients with coronary heart disease and angina pectoris and on serum IL-6, hs-CRP levels. Shanghai Medical & Pharmaceutical Journal. 2016;37:40-3

34. Bai YH, Cheng Y, Ren QX, Wang Y, Cao B. Effect of Shexiangbaoxin pills combined with nicorandil on microcirculation resistance index in patients with coronary microcirculation disorder. Chinese Journal of Difficult and Complicated Cases. 2022;21:119-23 +29

35. Shen SX, Zhao ZL, Wang SB, Du JJ, Ding SK, Wang LX. et al. Clinical analysis of the effect of Shexiang Baoxin pills combined with cardiac rehabilitation on coronary slow blood flow. Chinese Journal of Integrative Medicine on Cardio-Cerebrovascular Disease. 2021;19:1810-3

36. Wang Z, Xin D, Peng K, Wang Q, Li D. Effect of Yindan Xinnaotong soft capsule on coronary microcirculation function in microvascular angina patients with slow-flow coronary artery. Chinese Journal of Integrated Traditional and Western Medicine. 2019;39:418-22

37. Cheng L, Liu Y, Sun XB. The Clinical Efficacy of Yindanxinnaotong Soft Capsule in the Treatment of Stroke and Angina Pectoris: A Meta-Analysis. Evidence-based complementary and alternative medicine: eCAM. 2017;2017:2060549

38. Li P, Mao L, Chen RL. Observation on therapeutic effect of Shexiang Baoxin Pills on patients with cardiac syndrome X. Chinese Journal of Integrative Medicine on Cardio-Cerebrovascular Disease. 2009;7:88-9

39. Chen YJ, Huang XB, Chen WQ, Wang NQ, Zhu YY. Clinical observation of Xuefu Zhuyu capsule on prevention and treatment of cardiac syndrome X. Beijing Journal of Traditional Chinese Medicine. 2012;31:403-5

40. Wei J, Liu S, Wang X, Li B, Qiao L, Wang Y. et al. Efficacy and Safety of Shexiang Baoxin Pill for Coronary Heart Disease after Percutaneous Coronary Intervention: A Systematic Review and Meta-analysis. Evidence-based complementary and alternative medicine: eCAM. 2021;2021:2672516

41. Ma Y, Yang Y. Clinical study of wide chest aerosol in the treatment of coronary slow blood flow Chinese Journal of Integrative Medicine on Cardio-Cerebrovascular Disease. 2021; 19: 3738-40.

42. Yang QN, Bai RN, Dong GJ, Ge CJ, Zhou JM, Huang L. et al. Effect of Kuanxiong Aerosol () on Patients with Angina Pectoris: A Non-inferiority Multi-center Randomized Controlled Trial. Chin J Integr Med. 2018;24:336-42

43. Run JM, Zhang SY, Su YJ, Li J, Yan LQ, Yuan BM. Clinical study of Tongmai Yangxin pills in the treatment of female primary stable microvascular angin. China Medical Herald. 2022;19:145-8

44. Pang WT, Zhang JH, Zhai JB, Yang FW, Jin XY, Ji ZC. et al. [Tongmai Yangxin Pills in treatment for angina pectoris of coronary heart disease: a systematic review of randomized clinical trails]. Zhongguo Zhong Yao Za Zhi. 2019;44:2390-6

45. Chen R, Chen T, Wang T, Dai X, Meng K, Zhang S. et al. Tongmai Yangxin pill reduces myocardial no-reflow by regulating apoptosis and activating PI3K/Akt/eNOS pathway. J Ethnopharmacol. 2020;261:113069

46. Liang C, Tang XS, Ren YS, Sun CB, Wu ZG. Improvement of clinical symptoms and mechanism of Danshen Tablets in patients with cardiac syndrome X. Shanghai Medical Journal. 2007:367-8

47. Zhang HT, Jia ZH, Zhang J, Ye ZK, Yang WX, Tian YQ. et al. No-reflow protection and long-term efficacy for acute myocardial infarction with Tongxinluo: a randomized double-blind placebo-controlled multicenter clinical trial (ENLEAT Trial). Chin Med J (Engl). 2010;123:2858-64

48. Hui JQ, Yuan R, Li PQ, Xin QQ, Miao Y, Shen XX. et al. Efficacy and Safety of Different Courses of Tongxinluo Capsule as Adjuvant Therapy for Coronary Heart Disease after Percutaneous Coronary Intervention: A Systematic Review and Meta-Analysis of Randomized Controlled Trials. Journal of clinical medicine. 2022 11

49. Zhang XY. Effect of Compound Danshen Dropping pills on myocardial microcirculation in patients without reflows after PCI. Guangming Journal of Chinese Medicine. 2019;34:3613-5

50. Li C, Li Q, Xu J, Wu W, Wu Y, Xie J. et al. The Efficacy and Safety of Compound Danshen Dripping Pill Combined with Percutaneous Coronary Intervention for Coronary Heart Disease. Evidence-based complementary and alternative medicine: eCAM. 2020;2020:5067137

51. Gonzalez-Montero J, Brito R, Gajardo AI, Rodrigo R. Myocardial reperfusion injury and oxidative stress: Therapeutic opportunities. World J Cardiol. 2018;10:74-86

52. Chung JH, Lee KE, Park JW, Shin ES. Coronary microvascular disease and clinical prognosis in deferred lesions: The index of microcirculatory resistance. Clin Hemorheol Microcirc. 2019;71:137-40

53. Godo S, Suda A, Takahashi J, Yasuda S, Shimokawa H. Coronary Microvascular Dysfunction. Arteriosclerosis, thrombosis, and vascular biology. 2021;41:1625-37

54. Crea F, Camici PG, Merz CNB. Coronary microvascular dysfunction: an update. Eur Heart J. 2014;35:1101 -+

55. Li XD, Yang YJ, Geng YJ, Jin C, Hu FH, Zhao JL. et al. Tongxinluo reduces myocardial no-reflow and ischemia-reperfusion injury by stimulating the phosphorylation of eNOS via the PKA pathway. Am J Physiol Heart Circ Physiol. 2010;299:H1255-61

56. Cui HH, Li XD, Li N, Qi K, Li Q, Jin C. et al. Induction of Autophagy by Tongxinluo Through the MEK/ERK Pathway Protects Human Cardiac Microvascular Endothelial Cells from Hypoxia/Reoxygenation Injury. Journal of cardiovascular pharmacology. 2014;64:180-90

57. Pan CS, Yan L, Lin SQ, He K, Cui YC, Liu YY. et al. QiShenYiQi Pills Attenuates Ischemia/Reperfusion-Induced Cardiac Microvascular Hyperpermeability Implicating Src/Caveolin-1 and RhoA/ROCK/MLC Signaling. Front Physiol. 2021 12

58. Monti LD, Piatti PM. Role of endothelial dysfunction and insulin resistance in angina pectoris and normal coronary angiogram. Herz. 2005;30:48-54

59. Wang GR, Zhu Y, Halushka PV, Lincoln TM, Mendelsohn ME. Mechanism of platelet inhibition by nitric oxide: In vivo phosphorylation of thromboxane receptor by cyclic GMP-dependent protein kinase. P Natl Acad Sci USA. 1998;95:4888-93

60. Wang ZQ, Li Y, Xiao WL. Effect of Tongxinluo capsule on the vascular endothelial function in patients with coronary slow flow. China Journal of Traditional Chinese Medicine and Pharmacy. 2014;29:2034-6

61. Qi K, Li LJ, Li XD, Zhao JL, Wang Y, You SJ. et al. Cardiac Microvascular Barrier Function Mediates the Protection of Tongxinluo against Myocardial Ischemia/Reperfusion Injury. Plos One. 2015 10

62. Dong CY, Chen HY, Li Y. Clinical efficacy of compound salvia miltiorrhiza dropping pills combined with tegrenol in the treatment of angina pectoris after PCI of coronary heart disease. Chinese Journal of Integrative Medicine on Cardio-Cerebrovascular Disease. 2022;20:292-4

63. Xue ZM, Li YC, Yang YL, An L. Effects of Shexiang Baoxin pill and Nicordilon cardiac function and hemodynamics in patients with coronary microcirculation disorder after myocardial infarction. Chinese Journal of Coal Industry Medicine. 2020;23:70-4

64. Marroquin OC, Kip KE, Mulukutla SR, Ridker PM, Pepine CJ, Tjandrawan T. et al. Inflammation, endothelial cell activation, and coronary microvascular dysfunction in women with chest pain and no obstructive coronary artery disease. Am Heart J. 2005;150:109-14

65. Masi S, Rizzoni D, Taddei S, Widmer RJ, Montezano AC, Luscher TF. et al. Assessment and pathophysiology of microvascular disease: recent progress and clinical implications. Eur Heart J. 2021;42:2590-604

66. Gurzau D, Sitar-Taut A, Caloian B, Gusetu G, Comsa H, Fringu F. et al. The Role of IL-6 and ET-1 in the Diagnosis of Coronary MicroVascular Disease in Women. J Pers Med. 2021 11

67. Chae WR, Nuebel J, Baumert J, Gold SM, Otte C. Association of depression and obesity with C-reactive protein in Germany: A large nationally representative study. Brain Behav Immun. 2022;103:223-31

68. Recio-Mayoral A, Rimoldi OE, Camici PG, Kaski JC. Inflammation and Microvascular Dysfunction in Cardiac Syndrome X Patients Without Conventional Risk Factors for Coronary Artery Disease. Jacc-Cardiovasc Imag. 2013;6:660-7

69. Tong DC, Whitbourn R, MacIsaac A, Wilson A, Burns A, Palmer S. et al. High-Sensitivity C-Reactive Protein Is a Predictor of Coronary Microvascular Dysfunction in Patients with Ischemic Heart Disease. Front Cardiovasc Med. 2018 4

70. Aryan Z, Ghajar A, Faghihi-Kashani S, Afarideh M, Nakhjavani M, Esteghamati A. Baseline High-Sensitivity C-Reactive Protein Predicts Macrovascular and Microvascular Complications of Type 2 Diabetes: A Population-Based Study. Ann Nutr Metab. 2018;72:287-95

71. Wenzl FA, Ambrosini S, Mohammed SA, Kraler S, Luscher TF, Costantino S. et al. Inflammation in Metabolic Cardiomyopathy. Front Cardiovasc Med. 2021 8

72. Chen B, Liu H, Zhang YJ, Ma ZH, Tao JP, Hu Y. et al. Effect of Danhong Injection on the levels of plasma hs-CRP and Hcy and clinical efficacy in patients with microvascular angina pectoris. Chinese Journal of Integrative Medicine on Cardio-Cerebrovascular Disease. 2018;16:2116-8

73. Gu J, Hao JY. Effect of Compound Danshen Dropping pills on angina pectoris patients with coronary heart disease and Its influence on inflammatory factors and oxidative stress Index. Chinese and Foreign Medical Research. 2021;19:1-3

74. Zhu W. Efficacy of Xuefu Zhuyu decoction for microvascular angina pectoris and its effect on vascular endothelial function Shaanxi Journal of Traditional Chinese Medicine. 2019; 40: 46-8.

75. Sabbatino F, Conti V, Liguori L, Polcaro G, Corbi G, Manzo V. et al. Molecules and Mechanisms to Overcome Oxidative Stress Inducing Cardiovascular Disease in Cancer Patients. Life-Basel. 2021 11

76. Sheng J, Meng QF, Yang ZZ, Guan JL, Zhao Y, Zhang JD. et al. Identification of cryptotanshinone from Tongmai to inhibit thrombosis in zebrafish via regulating oxidative stress and coagulation cascade. Phytomedicine. 2020 76

77. Song FC, Wang Y, Zhang H. Effects of Yindan Xinnaotong soft capsule on oxidative stress indexes and the expression levels of miR-29b and miR-424 in patients with acute myocardial infarction after emergency percutaneous coronary intervention. Clinical Research and Practice. 2022;7:117-20

78. He N, Li mX, Zhang Q, Xu F, Zhang CF, Song D. Effects of Tongxinluo capsule on myocardial microperfusion in patients free of reflow after PCI and long-term efficacy and safety. Clinical Focus. 2021;36:129-33

79. Chang CL, Zhang L. Effect of Qishen Yiqi dripping pills combined with Ticagrelor on plasma visfatin level and serum oxidative stress markers in patients with coronary heart disease. Drug Evaluation Research. 2019;42:917-20

80. Zhang QY, Wang QL, Su JF, Deng BX, Cai GX, Li Y. Angiogenesis effects of Xuefu Zhuyu decoction and VEGF protein expression of rats with acute myocardial ischemia Chinese Journal of Information on Traditional Chinese Medicine. 2011; 18: 53-4.

81. Chen YQ, Zhuang MR, Li CL, Zhang WC. Effect of Shexiang Baoxin pills on hemorheology and angiogenesis in patients with coronary heart disease and its mechanism. World Journal of Integrated Traditional and Western Medicine. 2020;15:666-9

82. Huang DY, Wei WJ. Effect of Shexiang Baoxin pills on hemorheology and angiogenesis in patients with coronary heart disease and its mechanism. Liaoning Journal of Traditional Chinese Medicine. 2020;47:118-20

83. Zhang JG, Cui QF, Zhao YR, Guo RN, Zhan CS, Jiang P. et al. Mechanism of angiogenesis promotion with Shexiang Baoxin Pills by regulating function and signaling pathway of endothelial cells through macrophages. Atherosclerosis. 2020;292:99-111

84. Lu XY, Yao JK, Li CX, Cui LW, Liu YZ, Liu XN. et al. Shexiang Tongxin Dropping Pills Promote Macrophage Polarization-Induced Angiogenesis Against Coronary Microvascular Dysfunction via PI3K/Akt/mTORC1 Pathway. Frontiers in Pharmacology. 2022 13

85. Zhang L, Wang Y, Yu LY, Liu L, Qu HB, Wang Y. et al. QI-SHEN-YI-QI accelerates angiogenesis after myocardial infarction in rats. Int J Cardiol. 2010;143:105-9

86. Li JB, Bai M. Effect of Qishen Yiqi Dropping pills on hemorheology in elderly patients with cardiovascular and cerebrovascular diseases. Practical Journal of Cardiac Cerebral Pneumal and Vascular Disease. 2012;20:143

87. Huang XX, Lin ZH, Li HT, Li B, Wang S, Wang YD. Effects of compound Danshen Dripping pills on hemorheology, blood lipid and inflammatory factors in elderly patients with coronary heart disease. World Chinese Medicine. 2020;15:2438-42

Author contact

Corresponding authors: Xianliang Wang: xlwang1981com, Yi Wang: wangyiedu.cn, Jingyuan Mao: jymaocom.

Received 2023-5-2
Accepted 2023-5-24
Published 2023-6-4
