Research Paper

Expression of epicardial adipose tissue thermogenic genes in patients with reduced and preserved ejection fraction heart failure

Luis M. Pérez-Belmonte1 Corresponding address*, Inmaculada Moreno-Santos1*, Juan J. Gómez-Doblas1, José M. García-Pinilla1, Luis Morcillo-Hidalgo1, Lourdes Garrido-Sánchez2, Concepción Santiago-Fernández2, María G. Crespo-Leiro3, Fernando Carrasco-Chinchilla1, Pedro L. Sánchez-Fernández4, Eduardo de Teresa-Galván1, Manuel Jiménez-Navarro1 Corresponding address

1. Unidad de Gestión Clínica Área del Corazón, Instituto de Investigación Biomédica de Málaga (IBIMA), Hospital Universitario Virgen de la Victoria, Universidad de Málaga (UMA), CIBERCV Enfermedades Cardiovasculares, Málaga, Spain.
2. Unidad de Gestión Clínica de Endocrinología y Nutrición, Instituto de Investigación Biomédica de Málaga (IBIMA), Hospital Universitario Virgen de la Victoria, Málaga, CIBER Fisiopatología Obesidad y Nutrición (CIBERobn), Instituto de Salud Carlos III, Spain.
3. Servicio de Cardiología, Instituto de Investigación Biomédica A Coruña (INIBIC), Complejo Hospitalario Universitario A Coruña, CIBERCV Enfermedades Cardiovasculares, A Coruña. Spain.
4. Servicio de Cardiología, Instituto de Investigación Biomédica de Salamanca (IBISAL), Hospital Universitario de Salamanca, Universidad de Salamanca (USAL), CIBERCV Enfermedades Cardiovasculares, Salamanca, Spain.
*These authors contributed equally to this work: Luis M. Pérez-Belmonte and Inmaculada Moreno-Santos.

Citation:
Pérez-Belmonte LM, Moreno-Santos I, Gómez-Doblas JJ, García-Pinilla JM, Morcillo-Hidalgo L, Garrido-Sánchez L, Santiago-Fernández C, Crespo-Leiro MG, Carrasco-Chinchilla F, Sánchez-Fernández PL, de Teresa-Galván E, Jiménez-Navarro M. Expression of epicardial adipose tissue thermogenic genes in patients with reduced and preserved ejection fraction heart failure. Int J Med Sci 2017; 14(9):891-895. doi:10.7150/ijms.19854. https://www.medsci.org/v14p0891.htm
Other styles

File import instruction

Abstract

Epicardial adipose tissue has been proposed to participate in the pathogenesis of heart failure. The aim of our study was to assess the expression of thermogenic genes (Uncoupling protein 1 (UCP1), peroxisome proliferator-activated receptor gamma coactivator 1-alpha (PGC1α), and PR-domain-missing 16 (PRDM16) in epicardial adipose tissue in patients with heart failure, stablishing the difference according to left ventricular ejection fraction (reduced or preserved). Among the 75 patients in our study, 42.7% (n=32) had reduced left ventricular ejection fraction. UCP1, PGC1α and PRDM16 mRNA in EAT were significantly lower in patients with reduced left ventricular ejection fraction. Multiple regression analysis showed that age, male gender, body max index, presence of obesity, type-2-diabetes mellitus, hypertension and coronary artery disease and left ventricular ejection fraction were associated with the expression levels of UCP1, PGC1α and PRDM16 mRNA. Thermogenic genes expressions in epicardial adipose tissue (UCP1: OR 0.617, 95%CI 0.103-0.989, p=0.042; PGC1α: OR 0.416, 95%CI 0.171-0.912, p=0.031; PRDM16: OR 0.643, 95%CI 0.116-0.997, p=0.044) were showed as protective factors against the presence of heart failure with reduced left ventricular ejection fraction, and age (OR 1.643, 95%CI 1.001-3.143, p=0.026), presence of coronary artery disease (OR 6.743, 95%CI 1.932-15.301, p<0.001) and type-2-diabetes mellitus (OR 4.031, 95%CI 1.099-7.231, p<0.001) were associated as risk factors. The adequate expression of thermogenic genes has been shown as possible protective factors against heart failure with reduced ejection fraction, suggesting that a loss of functional epicardial adipose tissue brown-like features would participate in a deleterious manner on heart metabolism. Thermogenic genes could represent a future novel therapeutic target in heart failure.

Keywords: Epicardial adipose tissue, heart failure, left ventricular ejection fraction, thermogenic genes.

Introduction

Despite improvements in therapy, heart failure (HF) remains a leading cause of morbidity and mortality, affecting more than 37 million people worldwide and conferring a substantial burden on the health-care system [1]. It has been demonstrated that HF is associated with a pro-inflammatory state, mainly through an increase in pro-inflammatory adipokines and a decrease in anti-inflammatory adipokines, regulated by the expression of thermogenic genes [2]. Epicardial Adipose Tissue (EAT) has been proposed to participate in this adipokines production dysbalance and energy homeostasis, contributing to the pathogenesis of HF [3], but has not been fully characterized.

The main aim of our study was to assess the expression of thermogenic genes (Uncoupling protein 1 (UCP1), peroxisome proliferator-activated receptor gamma coactivator 1-alpha (PGC1α) and PR-domain-missing 16 (PRDM16) in EAT in patients with HF, stablishing the difference between patients with reduced ejection fraction (HFr-EF) and preserved ejection fraction (HFp-EF) and to evaluate the association with clinical and biochemical variables.

Material and Methods

Patients

Patients with HF who underwent elective cardiac surgery (coronary artery bypass and/or valve replacement) were included in our study and divided according to left ventricular ejection fraction (LVEF) determined by left ventriculography. HFr-EF was defined as an EF ≤40%, whereas HFp-EF was defined as an EF >40%. Exclusion criteria were severe infections, acute inflammatory diseases and/or cancer. Data about demographics and clinical characteristics, and biochemical parameters were collected.

The study was approved by the Institutional Research Ethics Committee from Hospital Universitario Virgen de la Victoria (Málaga, Spain) and carried out in accordance with the Declaration of Helsinki. Only patients who had previously given written informed consent were enrolled in this study.

Biological material

EAT biopsy samples (0.2-0.5g) were obtained near the proximal right coronary artery 1 hour after anesthesia. All the tissues were immediately frozen in liquid nitrogen and stored at -80ºC for RNA isolation.

In addition, peripheral venous blood was obtained and drawn into pyrogen-free tubes with or without ethylenedianminetetraacetic acid (anticoagulant). For serum, the tubes were left at room temperature for 20 min and then centrifuged at 1500 g for 10 min at 4ºC. In the hospital laboratory, fasting glucose, glycated hemoglobin (HbA1c), total cholesterol, low-density lipoprotein (LDL), high-density lipoprotein (HDL), triglycerides, creatinine, uric acid, glutamic-oxolacetic transaminase (GOT), glutamate-piruvate transaminase (GPT), gamma-glutamyl transferase (GGT), C-reactive protein (CRP), calcium, sodium and potassium were measured in a Dimension autoanalyzer (Dade Behring Inc., Deerfield, IL) by enzymatic methods (Randox Laboratories, Ldt., UK).

The gene expression levels in the adipose tissue were determined by real time quantitative polymerase chain reaction (PCR) using a predesigned and validated Taqman primer/probe sets.

Statistical analysis

Continuous variables are summarized as mean ± standard deviation with Student's T test used to test the significance of between-group differences. Discrete variables are presented as frequencies and percentages with between-group differences tested using Pearson chi-square test. Multiple regression analysis were used in order to identify independent predictors of EAT UCP1, PGC1α and PRDM16 levels, as well as to control for confounding factors; and those clinical variables that achieved P<0.05 on between-group comparison and cardiovascular plausible variables were included in the model. Logistic regression analysis was used to define the risk factors of reduced LVEF, and odds ratio (OR) and 95% Confidence Interval (95%CI) were calculated. SPSS for Windows version 15 (SPSS Inc. Chicago, IL, USA) was used for analyses and values were considered significant at P<0.05.

Results

Among the 75 patients in our study, 42.7% (n=32) had reduced LVEF. Clinical and laboratory differences between patients with reduced and preserved LVEF HF are listed in Table 1. Among patients with reduced LVEF, there were more men and more likely to have coronary artery disease and obesity, and less valve heart disease.

UCP1, PGC1α and PRDM16 mRNA in EAT were significantly lower in patients with reduced LVEF (P=0.004, P=0.002 and P=0.02, respectively) (Figure 1).

Multiple regression analysis showed that age, male gender, body max index (BMI), presence of obesity, type-2-diabetes mellitus (DM2), hypertension and coronary artery disease and LVEF were independently associated with EAT UCP1, PGC1α, and PRDM16 mRNA levels (Table 2).

 Figure 1

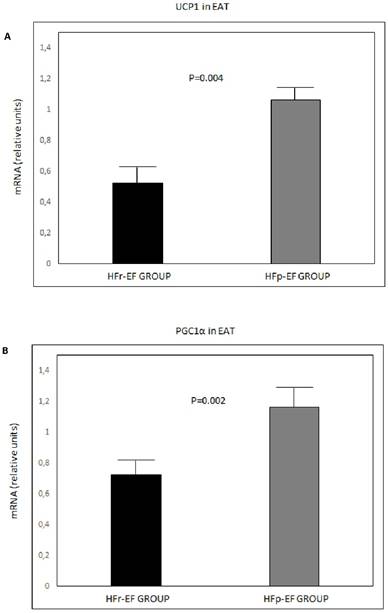

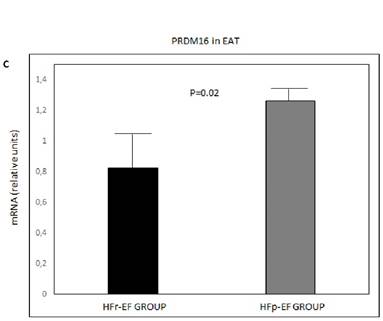

UCP1 (A), PGC1α(B) and PRDM16 (C) mRNA expression in EAT comparison between groups. Values are shown as mean ± standard deviation. Values were considered to be statistically significant when P<0.05. EAT: epicardial adipose tissue; HFp-EF: heart failure preserved-ejection fraction; HFr-EF: heart failure reduced ejection fraction; PGC1α: peroxisome proliferator-activated receptor gamma coactivator 1-alpha; PRDM16: PR-domain-missing 16; UCP1: uncoupling protein 1

Int J Med Sci Image Int J Med Sci Image

Thermogenic genes expressions in EAT were showed as protective factors against the presence of HFr-EF, and age, presence of coronary artery disease and type-2-diabetes mellitus were associated as risk factor in the logistic regression analysis (Table 3).

 Table 1

Clinical and laboratory characteristics of patients with heart failure with reduced and preserved left ventricular ejection fraction

Variables
N (%)
HFr-EF
(n=32)
HFp-EF
(n=43)
P value
Age, years62.5 ± 10.362.8 ± 11.50.718
Male gender26 (81.3)28 (65.1)0.003
Body mass index, kg/m226.6 ± 4.429.4 ± 5.30.03
LVEF, %34.9 ± 3.960.4 ± 8.5<0.001
Cardiovascular risk factors
Current smoking14 (43.8)16 (37.2)0.267
Dyslipidemia15 (46.9)23(53.5)0.317
Hypertension17 (53.1)25 (58.1)0.296
Diabetes mellitus10 (31.3)16 (37.2)0.277
Obesity14 (43.8)21 (48.8)0.127
Coronary artery disease19 (59.4)17 (39.5)0.04
Multivessel coronary disease22 (68.8)30 (69.8)0.431
Valve heart disease15 (46.9)28 (65.1)0.03
Cerebrovascular disease3 (9.4)3 (7)0.442
Medications
Aspirin17 (53.1)24 (55.8)0.766
Statin14 (43.8)22 (51.2)0.104
ACEI/ARB19 (59.4)25 (58.1)0.425
Beta-blocker21 (65.6)31 (72.1)0.370
Biochemical data
Glucose, mg/dL129.8 ± 57.7122.1 ± 43.70.349
HbA1c, %6.6 ± 1.36.2 ± 1.30.721
Total cholesterol, mg/dL160± 36163± 420.395
LDL cholesterol, mg/dL97± 3998± 330.381
HDL cholesterol, mg/dL40± 8.539 ± 140.320
Triglycerides, mg/dL161± 53144± 610.197
Creatinine, mg/dL1.3± 0.81 ± 0.40.711
Uric acid, mg/dL6.7± 3.65.6± 1.90.07
GOT, IU/L28.9± 11.935.3 ± 370.112
GPT, IU/L33.9± 18.936.9± 29.10.426
GGT, IU/L61.6± 44.852.1± 57.60.479
CRP, mg/dL27.1± 46.617± 32.90.222
Calcium, mg/dL8.5 ± 0.78.5± 0.80.858
Potassium, mmol/L4.2± 0.74.3± 0.40.855
Sodium, mmol/L136± 4.4138± 3.50.342

Values are shown as mean ± standard deviation and frequencies (percentages).

Values were considered to be statistically significant when P<0.05.

ACEI: Angiotensin Converting Enzyme Inhibitor; ARB: Antiotensin II Receptro Blocker; CRP: C-Reactive Protein; GGT: Gamma-Glutamyl Transferase; GOT: Glutamic-Oxolacetic Transaminase; GPT: Glutamate-Piruvate Transaminase; Hb1ac: glycated hemoglobin; HDL: High-Density Lipoprotein; HFp-EF: heart failure with preserved ejection fraction; HFr-EF: heart failure with reduce ejection fraction; IU/L: international units/liter; kg/m2: kilogram/square metre; LDL: Low-Density Lipoprotein; LVEF: left ventricular ejection fraction; mg/dL: milligram/deciliter;mmol/L: milimol/liter

Discussion

The present study found that patients with HFr-EF expressed significantly lower thermogenic genes (UCP1, PGC1α and PRDM16) in EAT than those with HFpEF. Age, male gender and different cardiovascular diseases were associated with the levels of thermogenic genes expression. EAT UCP1, PGC1α and PRDM16 mRNA levels were shown as possible protective factors against HFr-EF, and age and presence of CAD and DM2 were shown as risk factors.

 Table 2

Multiple regression analysis for prediction of epicardial adipose tissue UCP1, PGC1α and PRDM16 mRNA levels

VariablesEAT UCP1 mRNA (R2=0.503)EAT PGC1α mRNA (R2=0.641)EAT PRDM16 mRNA (R2=0.499)
β95%CIP valueβ95%CIP valueβ95%CIP value
Age0.0710.019-0.1320.0320.0990.032-0.1990.0030.0790.041-0.1770.041
Gender (Man)0.119-0.043-(-0.291)0.040-0.152-0.064-(-0.237)0.001-0.101-0.041-(-0.301)0.041
Body mass index-0.090-0.002-(-0.301)0.041-0.181-0.001-(-0.248)0.039-0.088-0.012-(-0.431)0.049
Obesity-0.281-0.108-(-0.931)0.029-0.381-0.119-(-0.849)0.022-0.229-0.099-(-0.983)0.041
Diabetes Mellitus-0.230-0.101-(-0.931)0.041-0.460-0.159-(-0.869)0.044-0.201-0.032-(-0.899)0.044
Hypertension0.0830.021-0.3330.0440.1310.021-0.3430.0390.0720.012-0.4350.049
Dyslipidemia0.145-0.241-2.0010.5190.243-0.343-1.1410.4390.198-0.341-1.1910.321
Coronary artery Disease-0.111-0.003-(-0.801)0.041-0.098-0.003-(-0.798)0.038-0.131-0.003-(-0.813)0.044
LVEF0.2220.081-0.3440.0020.3990.049-0.5980.0010.1190.052-0.3010.002

Values were considered to be statistically significant when P < 0.05

CI: Confidence Interval; EAT: epicardial adipose tissue; LVEF: left ventricular ejection fraction; PGC1α: peroxisome proliferator-activated receptor gamma coactivator 1-alpha; PRDM16: PR-domain-missing 16; UCP1: uncoupling protein 1.

 Table 3

Logistic regression analysis for the presence of heart failure with reduced ejection fraction

VariableOR (95% CI)P value
UCP1 mRNA0.617 (0.103-0.989)0.042
PGC1α mRNA0.416 (0.171-0.912)0.031
PRMD16 mRNA0.643 (0.116-0.997)0.044
Age1.643 (1.001-3.143)0.026
Gender (man)7.867 (0.717-26.101)0.223
Body mass index2.341 (0.683-8.033)0.312
Obesity3.001 (0.843-12.301)0.323
Diabetes mellitus4.031 (1.099-7.231)<0.001
Hypertension2.499 (0.798-14.133)0.492
Dyslipidemia3.301 (0.639-9.103)0.329
Coronary artery disease6.743 (1.932-15.301)<0.001

Values were considered to be statistically significant when P<0.05.

CI: confidence Interval; OR: odds ratio; PGC1α: peroxisome proliferator-activated receptor gamma coactivator 1-alpha; PRDM16: PR-domain-missing 16; UCP1: uncoupling protein 1.

These findings are important because they support the hypothesis that EAT thermogenic function could play an important role in the pathogenesis of HF. This is one of very few studies that have explored the influence of EAT on heart function in patients with HF and this is unique in that it assessed the association between thermogenic genes expression and HFr-EF and HFp-EF.

EAT represents a visceral brown-like adipose tissue located between the myocardium and the inner layer of visceral pericardium with a close anatomical proximity to the myocardium [4]. A functional EAT has been proposed to play a protector role over the myocardium but in pathological situations may be implicated in the development and/or progression of heart disease [3-5]. Several studies have shown that EAT is associated with the pathogenesis of HF, but focusing on EAT volume determined by echocardiography, magnetic resonance or computed tomography. Increased EAT thickness has been related to the severity of HF and explored the influence on diastolic and systolic functions [6,7]. However, only limited studies have explored the functionality of EAT [2,8]. Recent investigations have assessed the relationship between EAT gene expression in patients with HF, finding a functional role of EAT in the regulation of the development of HF [8]. p53, a tumor suppressor that coordinates DNA repair, cell cycle arrest and apoptosis; and adiponectin, an important anti-inflammatory adipokine, have been the principal gene expressions suggested to be important mediators of HF progression [9].

A number of reports have investigated the association between thermogenic gene expression such as UCP1, PGC1α and PRDM16, and coronary artery disease and other cardiovascular risk factors [10]. These genes have been recognized as specific marker of brown adipocites and regulators of oxidative metabolism and mitochondrial biogenesis, playing a relevant role in cardiac status [2]. A decrease of their gene mRNA expressions in EAT in patients with HFr-EF suggests a loss of EAT brown-like features, promoting pro-inflammatory and atherosclerotic pathways, exposing the heart to an excessive toxicity [11]. In line with these finding, we showed the thermogenic function of EAT and its involvement in the LVEF.

We acknowledge the following limitations in this study. We recruited a small number of recruited patients; our data were from a single hospital; and only small EAT biopsy samples were taken, being insufficient for a proteins determination. However, our study was carried out using a well-designed protocol and well-stablished methods. The hypothesis that EAT thermogenic genes expression was involved in patients with HF and influenced according to LVEF would need to be confirmed in a larger and multicenter research study.

In conclusion, the expression of thermogenic genes (UCP1, PGC1α and PRDM16) was lower in patients with HFr-EF than in those with HFp-EF. These genes have been shown as possible protective factors against HFr-EF, suggesting a loss of functional EAT brown-like features, what, subsequently, would participate in a deleterious manner on heart metabolism. Thermogenic genes could represent a future novel therapeutic target in patients with HFr-EF.
