Research Paper

A Peptide & Peptide Nucleic Acid Synthesis Technology for Transporter Molecules and Theranostics - The SPPS

Ruediger Pipkorn1 Corresponding address, Klaus Braun2, Manfred Wiessler2, Waldemar Waldeck3, Hans-Hermann Schrenk2, Mario Koch1, Wolfhard Semmler2, Dorde Komljenovic2

1. German Cancer Research Center, Dept. of Translational Immunology, INF 410, D-69120 Heidelberg, Germany
2. German Cancer Research Center, Dept. of Medical Physics in Radiology, INF 280, D-69120 Heidelberg, Germany
3. German Cancer Research Center, Division of Biophysics of Macromolecules, INF 580, D-69120 Heidelberg, Germany.

Citation:
Pipkorn R, Braun K, Wiessler M, Waldeck W, Schrenk HH, Koch M, Semmler W, Komljenovic D. A Peptide & Peptide Nucleic Acid Synthesis Technology for Transporter Molecules and Theranostics - The SPPS. Int J Med Sci 2014; 11(7):697-706. doi:10.7150/ijms.8168. https://www.medsci.org/v11p0697.htm
Other styles

File import instruction

Abstract

Advances in imaging diagnostics using magnetic resonance tomography (MRT), positron emission tomography (PET) and fluorescence imaging including near infrared (NIR) imaging methods are facilitated by constant improvement of the concepts of peptide synthesis. Feasible patient-specific theranostic platforms in the personalized medicine are particularly dependent on efficient and clinically applicable peptide constructs. The role of peptides in the interrelations between the structure and function of proteins is widely investigated, especially by using computer-assisted methods.

Nowadays the solid phase synthesis (SPPS) chemistry emerges as a key technology and is considered as a promising methodology to design peptides for the investigation of molecular pharmacological processes at the transcriptional level. SPPS syntheses could be carried out in core facilities producing peptides for large-scale scientific implementations as presented here.

Keywords: Functional peptides, Ligation chemistry, Linker systems, Solid Phase Peptide Synthesis, Therapy, Diagnostics, Theranostics.

General explanatory notes to the peptide synthesis chemistry

Proteins play a pivotal role in various biological processes in living cells. They serve as structural construction materials, transmit messages inside and outside of cells, and are responsible for regulating the cellular metabolism. Proteins are composed of long chains of amino acids, shorter chains are called peptides. Peptides or proteins can be used to identify structures recognized by antibodies or dynamic interactions between nucleic acids (DNA/RNA) and proteins. The transport of substances through physiological membranes can be studied with the aid of such functional peptides. These peptides are indispensable to develop treatment approaches at the molecular level by triggering the up-or-down regulation of specific gene functions.

The demand for peptide-based pharmaceutical products like the human insulin and test materials for the pharmaceutical research is exponentially growing.

Introduction

One approach to meet the demand for peptide-based pharmaceutical products like the human insulin and test pieces for the pharmaceutical research is the combinatorial chemistry. It was introduced in the 1980s, based on the pioneering works of Furka [1-4], Geysen [5-8], Houghten [9-12], Lam [13-17] and Moos [18-21]. The combinatorial chemistry was considered to be a promising technology and traces back to health-economic questions raised in the 1930's [22-25].

Until 1922 the amount of insulin isolated from cattle pancreas satisfied the needs of the diabetic patient-centered care, but in the 1930s the difficulties in obtaining sufficient amounts of pancreas organs increased evidently [26-28]. The first chemical synthesis of insulin, composed of 51 amino acids was published by Meierhofer and Zahn in 1963 [29]. Earlier, the total chemical synthesis of insulin was not assumed to be a successful technical method and the interest for it remained solely academical. Semi synthesis strategies also failed to secure reproducible yield rates [30-33] and a lack of available insulin occurred. The dilemma was documented in the “National Diabetes Advisory Board“ (1976), revealing the predicted demand of insulin until the year 2000, a task which natural sources fulfill [34].

The solid phase peptide synthesis (SPPS) with the amino-protecting group strategy introduced in 1963 and 1972 by Merrifield [35, 36] and Carpino [37, 38], yielded encouraging results and was considered to be a solution to meet the foreseen insulin shortage. Starting in 1977 with genetic engineering and recombinant chemistry methods the production of sufficient amounts of human insulin was possible by gene transfer to microorganisms [39].

SPPS proved to be a valuable option for the insulin synthesis, yet failed to secure the production of sufficient amounts of insulin. In the SPPS technology the educts are covalently linked to carrier resins which are insoluble in the reaction medium conducting the complete synthesis steps. The advantages of the SPPS over the synthesis in solution are evident: simple reuse of reacting agents by filtration, and the feasibility of automation. Simultaneous syntheses of manifold different chemical compounds, either single or mixed substances are possible. The SPPS is not only qualified by the accurately defined synthesis steps and in the realization of pure and homogeneous reaction products with high yields, but also in the multifaceted compounds inconceivable in the combinatory chemistry. These relevant attributes predestined this technology as a key tool in the systematic development of active peptide-based pharmaceutical compounds like hormones, neurotransmitters, and as references in the protein research, like modified antibody fragments and conformation analysis [40, 41].

This technology can be carried out in core facilities and can be considered as the key technology for multiple functionalization procedures, like the ligation of complex modifications which allow

  • the access to preparation of homogeneous proteins.
  • the access to proteins suitable for biophysical, binding, targeting and structural studies
  • the unlimited variability in the synthesis of the peptide chain with entirely new properties
  • introduction of active site modification
  • development of peptide-based pharmacologically active molecules
  • the connection of proteins with (bio)-polymers, like nucleic acid derivatives (chimers)

Chemical procedures

The chemical procedures of the SPPS were optimized according to the chemical and physical properties of the reaction partners and their resulting reaction products. Here the multi-faceted peptide-based molecules and conjugates underline the diversity of the exemplified SPPS methodologies:

Basic principles of the SPPS

During the chemical synthesis the amino acids are connected with each other by peptide-bond formation of acid amides via a successive coupling reaction. For a directional course of the condensation reaction both, the N-terminal amino group of the first reactant and the C-terminal carboxyl-group of the other reactant must be protected. This is achieved by cleavable protection groups. To avoid undesired secondary reactions, the reactive side chains of the so-called trifunctional amino acids (Lys, Glu, Asp, Ser, Thr, Tyr, Cys) must also be protected in a reversible form.

In this method of the SPPS, the peptide is built up sequentially from the C- to the N-terminus on a polymeric resin (Figure 1). In the first step of the peptide synthesis the C-terminal amino acid is connected with its carboxyl group to the polymeric resin via a linker. This linker allows the cleavage of the peptide from the resin after the end of synthesis under specific conditions. The next following protected amino acid (in the sequence) is then activated by coupling reagents (e.g. an ester) and reacts with the free amino end of the peptide chain at the carboxyl-terminus.

After deprotection by cleavage of the amino-protecting group, the next N-terminal protected amino acid ligation step follows. These coupling and cleavage cycles are repeated, until the peptide has reached the desired length. After finishing the couplings, the peptide is removed from the resin, i.e. the covalent bond between C-terminal amino acid and the anchor of the polymeric resin is separated. Dependent on the linker a peptide as free acid or a peptide as amide is released. The side chain protecting groups are in most cases split off at the same time.

 Figure 1

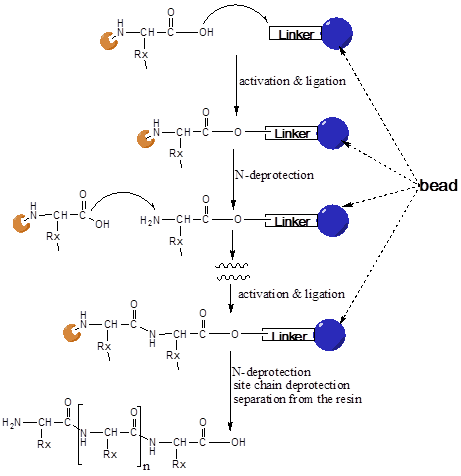

illustrates the principle steps of the SPPS (as described above). In a final step, the peptide is released from the support and the side-chain protecting groups removed. Generally, side-chain protecting groups and resin linkage are chosen in a way that protecting groups can be removed and the assembled peptides released under the same conditions.

Int J Med Sci Image

Major achievements

Synthesis of pharmacologically active peptides

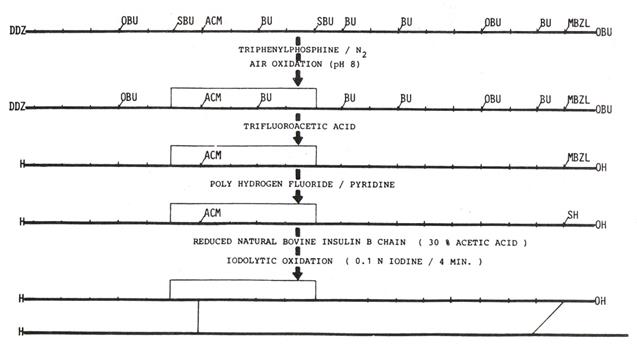

The insulin synthesis

The synthesis of the A- and B-chains in E. coli systems is documented but the oxidation of the insulin molecule was extremely inefficient. In 1979, Birr and Pipkorn described the first solid phase synthesis of the insulin A-chain harbouring selectively cleavable protecting groups. Under a stepwise oxidation of this A-chain and formation of the disulfide bridges with a natural B-chain the reaction product was combined to a peptide conjugate with biological hormone activity [42]. The reaction steps of the synthesis are illustrated in Figure 2 and described here in detail1.

This first successful access to the A-chain of the pharmacologically active insulin by use of the SPPS was considered as a step to the multi-faceted field of peptide syntheses for functional and for structural determination studies of viral and non-viral proteins as described here:

Proalbumin functionalized with an arginine hexapeptide extension

Based on previous studies of the regulation of serum albumin [43] the investigations were engrossed by studying the regulatory function, the biosynthesis and the intracellular transport. The studies were directed to the pre-processed intracellular proalbumin molecule whose C-terminus consists of the hexapeptide Arg-Gly-Val-Phe-Arg-Arg. For this purpose we used two SPPS produced peptides on cross-linked solid phase polystyrene gels functionalized with 2-oxoethyl bromide acting as an anchor. The coupling procedures of carbonyldiimidazole to 1-hydroxybenzotriazole facilitated the preparations of the Arg-rich sequences as documented in 1982 [44].

A further object of the SPPS was the transforming protein pp60SRC as a peptide for functional analysis.

The synthesis of phosphoprotein pp60SRC

Transforming protein, phosphoprotein pp60SRC, encoded by the Rous sarcoma virus (SRC) acts as a tyrosine-specific phosphokinase [45, 46]. The synthesis was performed with short synthetic peptides (6-9 amino acids in length) corresponding to the sequences of different regions of the primary structure of pp60SRC [47].

We also synthesized long peptides for regional studies of the HIV-1 genome.

HIV-1 proteins p24 and gp41 for immunosuppressive studies

The variability of the SPPS allows the production of long peptides in high yields and purity sufficient for structural studies on human immunodeficiency virus type 1 (HIV-1) in p24 gag reactive sera. The tested sera reacted with (61-77 amino acids) p24-derived peptides in enzyme immunoassays (EIAs) [48]. Specificity and singularity of the reaction were demonstrated by further enhanced competition studies with synthetic peptides [49].

The effects of the peptides on the immunosuppressive properties caused by HIV and the influence on the number of T-helper lymphocytes and the impairment of their function were investigated by use of long peptides with overlapping epitopes within a narrow part of gp41 as shown in Table 1 [50].

Furthermore, for studies on HIV-1 infected patients' continuative anti-V3 IgG response, such designed peptides proved to accomplish needed serological analyses.

Antigenic peptides against V3 IgG

Serological studies aim to illuminate the differences between African and non-African HIV-1 strains. The antibody reactivity of 34 Swedish, 30 Tanzanian and 42 Zimbabwean HIV-1-positive sera to 67 synthetic peptides, synthesized by SPPS, were investigated and compared with sequences from North American and African HIV-1 isolates, derived from regions of gag and env known to be antigenic [49, 51, 52].

Peptides and peptide nucleic acids (PNAs) for delivery and targeting studies against the capsid assembly inhibitor (CAI) of HIV-1

The number of drug-resistant variants of HIV increased and the exploration of new alternative targets is necessary for the next generation of antiviral drug development. Here the synthesis and application of functional peptides [53] facilitating the passage across the cell membrane of CAI-directed PNAs (Figure 3) to the gag gene, expressed from the unspliced viral mRNA, are documented [53].

 Table 1

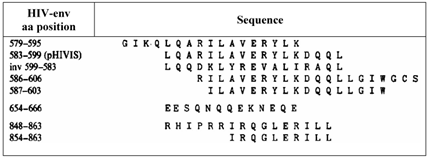

lists the synthesized and the tested peptides and the amino acid sequences.*

Int J Med Sci Image

*) modified from Klasse [50].

 Figure 2

illustrates the chemical route of the reaction steps started with the fully protected insulin A-chain upper line. Protecting groups used in the synthesis of the insulin A-chain. The detailed chemical procedure of the synthesis was described previously1. DDZ- = dimethyl-3,5-dimethoxybenzyloxycarbonyl residue; SBu- = t-butylthio; OBU-= t-butoxy; ACM-= acetamidomethyl; Bu-= t-butyl; MBZL- =4-methylbenzyl (modified from Pipkorn [42])

Int J Med Sci Image
 Figure 3

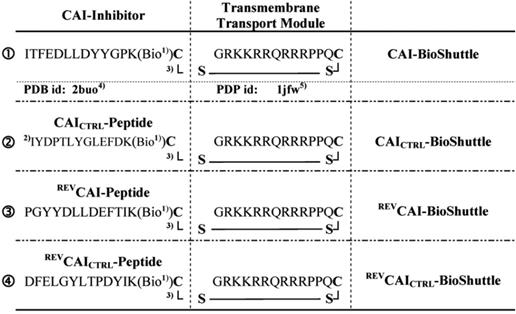

illustrates the schematized modular compositions of the investigated CAI-BioShuttle conjugates. The inhibitor peptide, control peptides, and the transmembrane transport module are connected with a sulfur bridge between the two cysteines (Single letter symbol C [bold]). Horizontally: ❶ represents the modules of the CAI-BioShuttle, ❷ the CAICTRL-BioShuttle, and ❸ and ❹ the BioShuttle connected to the reverse form of the CAI-inhibitor and the control, respectively. Vertically: ❶ CAI-Inhibitor, ❶ scrambled control and their corresponding peptides in reverse orientation ❸ and ❹ respectively. Middle column shows the transmembrane transport module. 1) Biotin; 2) scrambled sequence; 3) sulfur bridge (modified from Braun [53]).

Int J Med Sci Image

Peptides for neurotoxicity studies

Special synthesis of peptides for functional studies of Alzheimer's disease

Alzheimer's disease is characterized by progressive neuronal dysfunction, reactive gliosis, and the formation of amyloid plaques in the brain. The amyloid precursor protein (APP) copper-binding domain (CuBD) has a pivotal role in the Cu metabolism reducing Cu2+ to Cu+ and mediating copper-induced oxidation processes [54]. The APP CuBD is involved in the modulating Cu homeostasis and amyloid-β peptide production. The chemical synthesis of the tested APP CuBD peptides the Fmoc strategy was used as described [55].

Functionalization of catalytically active enzyme-fragments for structural studies

Myristoylation, phosphorylation and deamidation

Several isoenzymes of the catalytic subunit of cAMP-dependent protein kinase arise through posttranslational modifications of the enzyme outside the catalytic domain. A clustering of sites for such a modification exists at the N-terminus of the protein, where myristoylation (of Gly1), phosphorylation (at Ser10), and deamidation of Asn2 have been observed [56-58]. Biological significance of these is not yet fully understood. To learn more about the mutual influence of various modifications, myristoylation, deamidation, and phosphorylation, a set of hexadecapeptides based on the Cα gene product was synthesized by SPPS (peptide synthesis and purification are here described in detail2) with different combinations of these modifications including variations of the chain length of the fatty acid. As deamidation in vivo could lead to the formation of iso(β)Asp, peptides with this residue were added to the set. The structural behaviour of these peptides under the influence of solvent polarity was studied by CD-spectroscopy [59].

Chemical diagnostics and therapeutical approaches

Synthesis of an intracellular Gd-based contrast agent in magnetic resonance imaging (MRI)

The commonly used gadolinium (Gd3+)-based MRI-contrast agents are able to display the intercellular space very well, but they are not suitable for intracellular imaging. The goal of our study was to determine whether this contrast agent could be accumulated in tumor cells in vitro (HeLa cells) and in vivo (Dunning R3327 AT1 rat prostate adenocarcinoma) and whether the specificity of the PNA for the up-regulated c-myc mRNA in the cell cytoplasm would have an effect on contrast agent retention in the tumor cells [60]. To perform the synthesis of the peptide modules, we used the synthesis protocol3.

Synthesis of a MRI contrast agent for imaging of cell nuclei

Molecular imaging necessitates a sufficient amount of contrast agent within the cell. We realized the intracellular uptake and cell compartment specificity of the commonly used interstitial contrast agent gadolinium (Gd3+) ligated to a cell-nucleus addressed peptide module (NLS) which in turn was connected with a module composed of a cell penetrating peptide (CPP) facilitating the transfer across the cell membrane. By use of MRI, (Gd3+) was detected within DU-145 prostate cancer cells [61]4.

Synthesis of Peptide arrays

The aim of this further method is to synthesize and analyze as many peptides as possible, in order to, e.g. identify individual peptides that bind to a target protein. As documented, this one-bead-one-compound method identifies many different peptides readily (Figure 4) [62].

 Figure 4

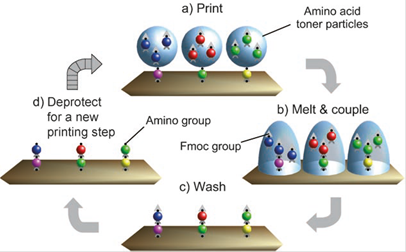

illustrates the particle-based Merrifield synthesis. a) A laser printer delivers Fmoc amino acid-OPfp esters embedded within toner particles to specific locations on a solid support, on which b) the particles are melted after transfer. Melting enables the amino acid derivatives to diffuse and undergo coupling to the support. A synthetic cycle is completed when c) excess monomers are washed away, and d) the Fmoc protecting group is removed. Repeated coupling cycles generate a peptide array (modified from Stadler [62]).

Int J Med Sci Image

Reformulation of drugs

The pharmacologic potency as well as the adverse reactions of the highly efficient chemotherapeutic temozolomide (TMZ) is documented [63-65]. The re-formulation “old fashioned” drugs, like TMZ to the TMZ-BioShuttle conjugate, achieved an enhancement of the original potential of the TMZ. The TMZ-BioShuttle resulted in a higher pharmacological effect in glioblastoma cell lines dramatically with reduced doses. This permits the conclusion that a suitable chemistry could realize the ligation of pharmacologically active, but sensitive and highly unstable pharmaceutical ingredients without functional deprivation as first described by Waldeck in 2008 [66]. The synthesis steps were published by Pipkorn in 2009. The procedure steps of the intermediates of the solid phase are summarized here5 [67].

Syntheses of complex peptides and PNA modules consisting of cell-specific cleavage sides for delivery and targeting studies

BioShuttle peptides-based conjugates

Recent progress in genome research and in biochemistry techniques resulted in a better understanding of disease mechanisms, which led to the design and synthesis of novel diagnostic molecules and drugs with high specificity. In this context the central pharmacological question is: how to deliver sufficient amounts of substances to their target? Since successful drug delivery and targeting is a very complex problem, directed drug delivery is one of the most important goals of pharmaceutical research and development. This is illustrated and discussed in a review of the BioShuttle technology and outlines the use of combinatorial chemistry and SPPS in drug discovery [68, 69].

Clamp-BioShuttle-mediated oligonucleotid active transfer into nuclei of prostate cancer cells

Efficient and safe substance delivery is required for genetic interventions which are hampered by the risk of inflammatory reactions, inefficient delivery strategies, and unexplained specific local gene activation and its expression rate in the target tissue. A non-viral gene peptide-based carrier system for inactivated genes was developed with an efficiency of almost 100% cellular uptake of the bioconjugate called “Clamp-BioShuttle-phNIS-EGFP”. It shows a consistent gene expression which qualified the BioShuttle plasmid as a carrier tool in the technology for gene transfer, gene therapeutic approaches and for molecular diagnostics [70-73]6.

Modular peptides for studies of Cathepsin B addressed cleavable carrier and targeting conjugates

The treatment by effective doses of drugs can lead to adverse reactions and marked toxicity in patients. The main goal of every delivery system is, therefore a delivery of a precise amount of a drug to the desired location in order to achieve the necessary drug concentration in the target organ for effective treatment. The key problem still remains the achievement of curative doses in a pharmacologically active state in the desired target while avoiding side effects. We aimed to overcome this hurdle by the use of a “BioShuttle” carrier system which is able to deliver inactivated genetic material or functional peptides into cells and target tissues followed by a local activation. This BioShuttle carrier consists of the following modules: cell penetrating peptide (CPP), Cathepsin B cleavable spacer (CTBCS), cell nucleus address signal sequence (NLS) and a covalently linked functional peptide- or genetic-unit [74-76]. The synthesis procedure of the solid phase is described here7.

Development of theranostic molecules

Development of Fmoc-building blocks for synthesis of theranostic agents

Targeted therapeutic and molecular imaging strategies require suitable materials for facilitating disease diagnosis and therapy in a single step. Cell- and tissue-specific targeting is, therefore, carried out via theranostic agents, which have diagnostic and therapeutic properties in a single molecular formulation. The Wiessler group [77] developed a prototype of a such theranostic agent by use the Diels-Alder methodology with inverse electron demand (DARinv) [78], an efficient click chemistry technology to synthesize cyclic RGD-BioShuttle [79] constructs. These constructs carry both the near-infrared (NIR) imaging agent Cy7 [80] and the chemotherapeutic agent temozolomide (TMZ) [81]. They were synthesized by SPPS and could be considered as an example for modern family of drugs and diagnostics enabling personalized medicine [82, 83]

Outlook

The operational excellence of the SPPS fulfils the need of the chemical peptide synthesis of different functional peptides to study the interaction of structure and functional activity. Specific tasks about identification of anti-epitopes within protein sequences can also be addressed using individually synthesized peptides. Additionally dynamic cellular processes concerning DNA-, RNA- and protein levels can be measured and simulated with specific functional peptides. The process can also be understood in conjunction with inter-and intra-cellular transport of protein units (drug delivery & drug targeting [drug discovery]). A further potential of the SPPS is the development and design of tools helpful for monitoring of modern diagnostic processes. Molecular imaging (MRT, PET, SPECT) and fluorescence imaging respectively, are feasible by appropriate special synthetic peptides. Molecular modelling- and biocomputing-methods of synthetic peptides help to understand cellular structure and function. Developments of therapeutical approaches at the molecular level (antisense- and anti-Gene as well as si-RNA and opener/closer methodologies) are evident. Molecular imaging strategies for therapy monitoring make theranostic agents a promising tools not only in the expanding field of the personalized medicine but also in the nanotechnology field. This multi-faceted spectrum of applications was underpinned by a Scott Kahn's [84] assumption that “the solid phase chemistry can be the next generation of organic science”.

Competing Interests

The authors have declared that no competing interest exists.
